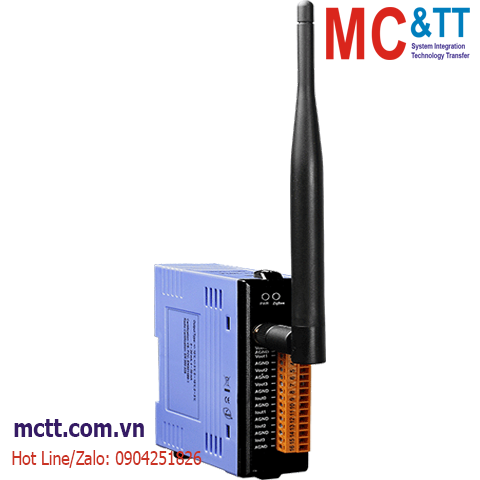

Module Zigbee Modbus RTU 4 kênh AI + 4 kênh AO ICP DAS ZT-2024 CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G / ZigBee Specifications
- Wireless Transmission Range up to 700 m
- External DIP and Rotary Switches for easy Configuration
- GUI Configuration Software (Windows Version)
- 4 Analog Output Channels (V, mA)
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- ±4 kV ESD Protections (Conact for each Terminal)
- DIN-Rail Mounting
Introduction
The ZT-2024 is a 12-bit, 4-channel analog output wireless ZigBee module that provides a programmable output range an all channels, including 0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA or +4 mA ~ +20 mA. There are also options for configuring the power-on value and the safe value. The module address, protocol, checksum, ZT-PID, ZT-channel and type code settings can be easily configured settings using a combination of rotary and DIP switches.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Power Line, Communication Line and each Channel,
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| ZigBee |
| Certifications |
FCC/FCC ID, CE (RED excluded) |
| Max. Slaves |
255 |
| Protocol |
Supports DCON and Modbus RTU Protocols |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (FCC Certificated) (Max. 19 dBm) |
| Transmission Distance (LoS) |
700 m (Typical) |
| Analog Input |
| Type |
0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA, +4 mA ~ +20 mA |
| Analog Output |
| Channels |
4 |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Programmable Output Slope |
0.125 to 2048 mA/ second
0.0625 to 1024 V/ second |
| Voltage Output Capability |
10 V @ 10 mA |
| Current Load Resistance |
External +24 V power : 1050 Ω |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Isolation |
2500 VDC |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
2.2 W Max. |
| Mechanical |
| Dimensions (mm) |
33 x 87 x 110 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2024 CR |
ZigBee Wireless 4-channle Voltage/Current Output Module (ZigBee Router) (RoHS)
(Asia Only) |
