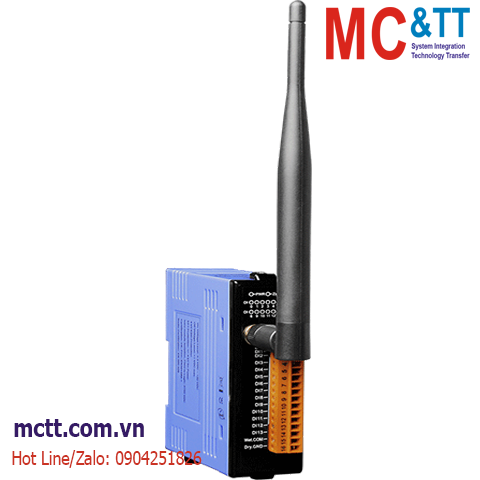

Module ZigBee 14 kênh DI ICP DAS ZT-2053-IOP CR

Feature

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • 14 Channels Pair-connection of the Digital Input
  • DO Safe Value setting for Wireless Disconnection Monitoring
  • Configurable I/O Pairing Number
  • Surge and ESD Protection
  • Supports AES-128 Encryption for the Wireless Communication
  • DIN-Rail Mountable

Introduction

The ZT-2053-IOP module acts as a ZigBee coordinator that provides 14-channel digital input pair-connection function with module of ZT-2043 (14-ch sink type digital output). An embedded I/O channel binding function means that there is no need to use an external controller. The status of each ZT-2053-IOP channel triggers the corresponding remote digital output channels on the ZT-2043 module. The ZT-2053-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2043 to ensure that the digital output channels are synchronized. The ZT-2053-IOP also provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) 4 kV for Power Line
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
Surge (IEC 61000-4-5) 3 kV for Power
LED Indicators
Status 1 x Power / Debug
1 x Communication
14 x Digital Input
ZigBee
Antenna 2.4 GHz, 5 Omni-Directional
Max. Slaves 255
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certificated)
Transmission Distance (LoS) 700 m (Typical)
Digital Input
Channels 14
Type Dry + Wet Contact
ON Voltage Level Dry: Close to GND
Wet: +3.5 VDC ~ +30 VDC
OFF Voltage Level Dry: Open
Wet: Max. +1 VDC
Input Impedance 3 kΩ, 0.33 W
Effective Distance 500 m Max.
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 0.72 W
Mechanical
Dimensions (mm) 33 x 78 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ZT-2053-IOP     CR  ZigBee I/O Pair-connection Module with 14-ch Isolated DI (ZigBee Coordinator) (RoHS) (Asia Only)
