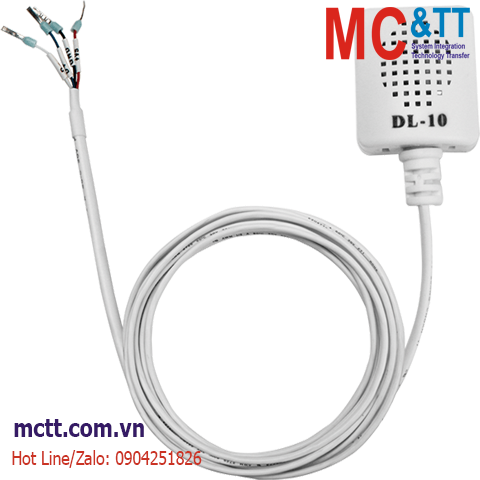

Module đo nhiệt + độ ẩm RS-485 Modbus RTU ICP DAS DL-10 CR
Feature
- Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
- Accuracy: ±0.4°C; ±3.0% RH
- 10 ~ 30 VDC Power Input
- RS-485 Communication interface
- Modbus RTU Protocol
Introduction
The DL-10 is a RS-485 remote temperature, humidity and dew point module that gives you real time temperature, humidity and dew point information at the same time. It contains an RS-485 communication interface and an sensor for measuring temperature, humidity and dew point.
The DL-10 module supports Modbus RTU communication protocol for getting measured temperature, humidity and dew point values. DCON Utility Pro provides easy and convenient interfaces for users to confi gure the module. Based on an amazing tiny form-factor, the DL-10 achieves the maximum space savings that allows it to be easily installed anywhere.
Application
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Warehouses
- Museums, archives, galleries
Specifications
| Temperature Measurement |
| Precision |
±0.1°C |
| Range |
-20 ~ +60°C (-4 ~ +140°F) |
| Resolution |
0.1°C |
| Accuracy |
Typical: ±0.4°C |
| Humidity Measurement |
| Precision |
±0.1°C |
| Range |
10 ~ 95% RH |
| Resolution |
0.1°C |
| Accuracy |
Typical: ±3% RH @ 20 ~ 80% RH |
| Dew Point |
| Range |
Calculated using temperature and relative humidity |
| Resolution |
0.1°C |
| COM Ports |
| Ports |
1 x RS-485, Non-isolated |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
Modbus RTU |
| Max. Connection |
32 |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.05 W |
| Mechanical |
| Dimensions (mm) |
25 x 20.2 x 30 (W x L x H) |
| Installation |
Magnetic mount;
Wall mount |
| Cable Length |
3 m |
| Environment |
| Operating Temperature |
-20 ~ +60°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DL-10 CR |
Remote Temperature/Humidity/Dew Point Sensing Module, Using Modbus RTU Protocol, 3 M (White Cover) (RoHS) |
