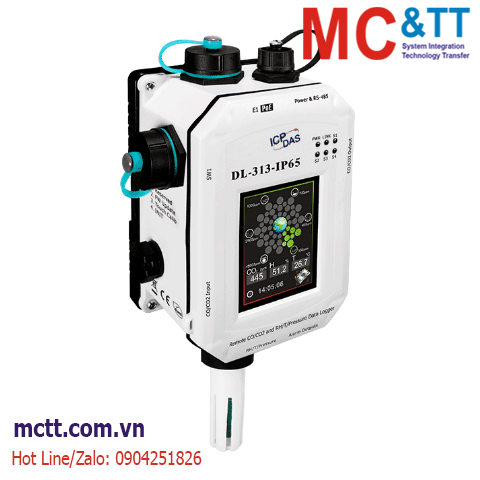

Module Data Logger đo CO + CO2 + nhiệt độ + độ ẩm + Áp suất RS-485/Ethernet Modbus RTU/TCP & MQTT ICP DAS DL-313-IP65 CR

Module Data Logger đo CO + CO2 + nhiệt độ + độ ẩm + Áp suất RS-485/Ethernet Modbus RTU/TCP & MQTT ICP DAS DL-313-IP65 CR

The DL-300-IP65 series of Data Logger devices can be used to record CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300-IP65 Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The DL-300-IP65 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level

Supports the MQTT Protocol for IoT Applications

Free and Power DL300 Utility Software

The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV fi le that can then be imported into any industry-standard software or spread sheet for analysis.

Display Messages in Multiple Languages

The display-message-on-screen function supports multiple language character sets based on UTF-8 encoding. Users can remotely display either pre-configured messages or dynamic messages to prompt an operator with a daily schedule or IAQ device control instructions.

Multi-platform Remote Access Software

Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.

Feature

• Able to record CO, CO₂, Temperature, Humidity, Dew Point and Pressure Measurements
• Non-dispersive Infrared (NDIR) CO2 Sensor
• Electrochemical Sensor
• 2.8" LCD Touch Screen
• Up to 450,000 records with date and time stamps
• Touch-screen and Web-based Configuration Interface
• Simple and Powerful Software Utility, iOS APP and Android App Included
• Able to Display Multilingual Messages on the Screen
• Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
• Includes RS-485/Ethernet/PoE Communication Interfaces
• Relay Output for Audible/Visual Alarm or IAQ Device Control
• Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
• IP65 Protection Approval

Application

Mushroom Farm

Mushroom growth yield requires long time to monitor the environment of CO2 concentration, temperature and humidity values, and its growth environment is high humidity condition. The general equipment cannot work in such environment, but the DL-312-IP65 can be used to record CO2, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20˚C to +50˚C, and are able to store up to 450,000 downloadable records. The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and flexible. This does not require programming, only some simple settings will be able to achieve the farm production control and quality control, production resume ... and so on.

Pig Farm

Ammonia and Hydrogen sulfide are two of the most harmful gases in animal farming environment. They will directly affect animals’ growth and immunity. Pig farm requires long-term immediate monitoring the environment of NH3 concentration, temperature and humidity values. The general equipment cannot work in such environment, but the DL-315-IP43 can be used to record NH3, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20°C to +50°C, and are able to store up to 450,000 downloadable records. The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and flexible. This does not require programming, only some simple settings will be able to achieve the farm production control and quality control, production resume ... and so on
