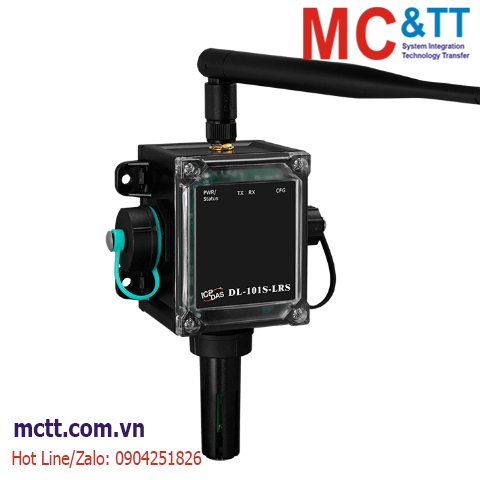

Module đo và hiển thị nhiệt độ – độ ẩm – nhiệt độ bầu ướt LoRa Modbus TCP ICP DAS DL-101S-LRS CR
The DL-10xS-LRS Series devices utilize Semtech's LoRa technology. Specifically, they incorporate spread spectrum modulation technique derived from chirp spread spectrum (CSS) technology, LoRa transceivers, enabling long-range, low-power wireless communication for IoT applications. This technology allows for significant range and robustness, making it suitable for various IoT deployments.
The DL-10xS-LRS Series Data Logger devices can be used to record temperature, humidity, dew point, Wet-Bulb and Air Pressure(DL-102S-LRS) information, including the date and time stamps for each record, with up to 650,000 downloadable records(CSV) able to be stored. Real-time data can be accessed by using the PC Utility. It includes 2-channel Photo MOS Relay Output using trigger source and range for Alarm Devices.
DL-10xS-LRS Series are designed with own LoRa proprietary protocol. AES-128 encryption is used in wireless LoRa communications to ensure data security. AES-128 is a symmetric encryption algorithm that uses a 128-bit key to encrypt and decrypt data, balancing speed and security. It is suitable for general data security needs, for data protection. It needs to co-work with an Ethernet Gateway(GW-100-LRS) or Wi-Fi Gateway(GW-200-LRS), which makes perfect integration for monitoring or control in SCADA software or HMI Modbus.
Feature
- LoRa communication monitoring and configuration with a Modbus TCP Gateway
- Long Range communication with LoRa proprietary protocol
- Support AES-128 wireless encryption
- Photo MOS Relay output
- Measure Temperature, Relative Humidity, Dew Point , Wet-Bulb, Date and Time
- Air Pressure, Altitude measure (DL-102S-LRS Only)
- Up to 650,000 data logger records
- IP65 Protection Approval
Application
Greenhouse Automation Cloud Management Solution
- Transportation of food or pharmaceuticals
- Building and energy management
- Food and beverage industry
- Museums, archives, galleries
- Blood stations, pharmacies
- Warehouses
- Smart Agriculture
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
±8 kV Air for Random Point |
| LED Indicators |
| Status |
Blue for Power/Indicator
Red for System alive status
Green for RX
Red for TX
Orange for Enter config |
| System |
| Data Logger |
650,000 |
| Temperature Measurement |
| Range |
-20 ~ +60°C (-31 to +176˚F) |
| Resolution |
0.1°C |
| Accuracy |
Typical: ± 0.4°C |
| Humidity Measurement |
| Range |
0 ~ 100% RH |
| Resolution |
0.1% RH |
| Accuracy |
Typical: ±3% RH @ 20 ~ 80% RH |
| Atmospheric Pressure |
| Range |
300 ~ 1200 hPa (DL-102S-LRS only) |
| Accuracy |
1 hPa (DL-102S-LRS only) |
| Resolution |
0.1 hPa (DL-102S-LRS only) |
| LoRa |
| Baud Rate |
0.9 ~ 3.9 Kbps |
| Frequency |
920 ~ 925 MHz (16 Channel) |
| Band Width |
500 KHz |
| Encryption |
AES-128 |
| Protocol |
Proprietary protocol |
| Transmition Power |
15 dBm |
| Relay Output |
| Channels |
2 |
| Type |
PhotoMOS Relay, Form A |
| Contact Rating |
100 VDC @ 1 A |
| Power |
| Input Range |
+9 ~ 48 VDC with Reverse Protection (+Vs to GND) |
| Consumption |
0.35 W |
| Mechanical |
| Dimensions (mm) |
103 x 135 x 55 (W x L x H) |
| Installation |
DIN-Rail/Wall Mount (Select ASO-0015) |
| Ingress Protection Rating |
IP65 |
| Environment |
| Operating Temperature |
-20 ~ +60°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DL-101S-LRS CR |
LoRa proprietary, Temperature, Humidity, Dew Point and Wet-Bulb Data Logger (Black Cover) (RoHS) |
