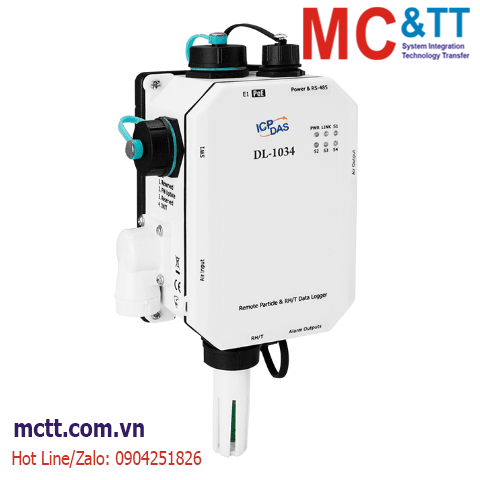

Module Data Logger đo độ bụi PM1/2.5/10 + đo CO, CO2, HCHO, TVOC + nhiệt độ + độ ẩm RS-485/Ethernet Modbus RTU/TCP & MQTT ICP DAS DL-1034 CR

Module Data Logger đo độ bụi PM1/2.5/10 + đo CO, CO2, HCHO, TVOC + nhiệt độ + độ ẩm RS-485/Ethernet Modbus RTU/TCP & MQTT ICP DAS DL-1034 CR

The DL-1000 can measure the concentration of particles in the air and various gas concentrations related to human health can also be measured. In addition, DL-1000 can record data and send alarm when concentration is too high.

• Particles：

     Concentration of particles (PM1, PN2.5, PM10), particle count (0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm)

• Concentration of various gas：

     CO/ CO₂/ O₂/ HCHO/ TVOC/ NH₃/ H₂S/ SO₂

DL-1000 stores up to 180,000 downloadable records, including date and time stamps. Real-time data can be accessed from the DL-1000 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. The DL-1000 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The DL-1000 series is designed for industrial applications in harsh environments that provides IP43 protection rating. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.

Multi-platform Remote Access Software

Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the iAir Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.

Supports the MQTT Protocol for IoT Applications

Simple and powerful utility

The iAir Utility can be used to configure the modules, monitor real-time data, group DL-1000 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

Replaceable Filter Patch (FLT-C001)

The windshield filter of DL-1000 is replaceable and with replaceable patches, which makes it easy for user to replace by themselves. Commercially available sensors are easily affected by dust when used outdoors, which may result in continuous alarm readings and the inability to correctly measure ambient gases. They need to be sent back to the original factory for repair, which increases costs and downtime. ICP DAS’s design allows users to easily replace the filter, reducing maintenance costs and time caused by dust blockage.

Feature

• Able to record PM1/2.5/10, SO₂, Temperature, Humidity, and Dew Point Measurements
• Up to 180,000 records with date and time stamps
• Web-based Configuration Interface
• Simple and Powerful Software Utility, iOS APP and Android App Included
• Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
• Includes RS-485/Ethernet/PoE Communication Interfaces
• Relay Output for Audible/Visual Alarm or IAQ Device Control
• Includes redundant power inputs: PoE and DC input
• IP 43 Protection Approval

Application

Intelligent Street Lighting in Smart City

In smart city applications, smart street lights integrate various communication technologies and are no longer illumination only. The high-density construction of streetlights have become one of the most important sources of government collecting road information in recent years. DL-1000 series products, with standard industrial communication protocol Modbus RTU/TCP, can integrate with smart streetlights to achieve outdoor air quality monitoring such as: O3, CO, CO2, SO2, NO2, TVOC, HCHO, and Particle Matter 1/2.5/10. Due to these aerosol could accumulate around the sensor and would cause error record after using for a period, DL-1000 support replaceable dust filter patch to easily change the patches inside the filter hood rather than uninstall the device.

Outdoor Mobile Air Quality Detection Application

In developed countries, the Air Quality detection, statistics and evaluation is the most for improvement. In a vast area, it can only rely on the vehicle moving to record status of air quality, and to offline extract these and send back sorting out.
ICP DAS DL-1000 series can integrate with our 3G/ 4G controllers to transmit data back to control center wirelessly.

Factory Gas Detection Application

In some factories, H2S is one of the harmful gases. Due to the colorless and odorless are two characteristics quite hard to find or feel it, sometimes the workers inside the factory get injured inevitably. Joint liability from the injury brings the company a massive fines.
DL-1026 H2S detector module can put in the spot. It equip with standard industrial protocols and with high flexible to integrate information from devices and transmit back to control center. When the concentration of gas is too high, DL-1026 can also send alarm signals to inform relative person to evacuate people there.
