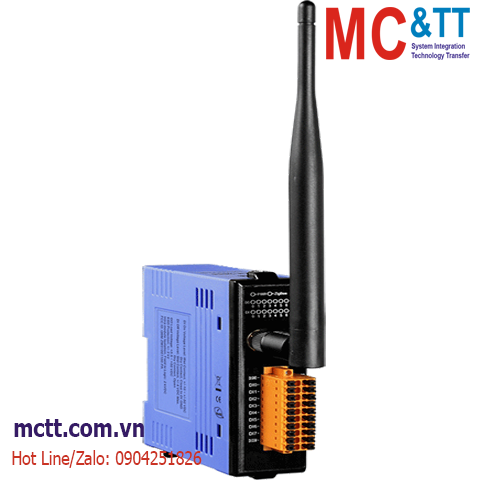

Module Zigbee 8 kênh DI + 8 kênh DO ICP DAS ZT-2055-IOG CR

Feature

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Supports AES-128 Encryption for the Wireless Communication
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • Physical Pair-connection Channels of 8 Digital Input and 8 Digital Output
  • 280 Logical Pair-connection Channels Supported
  • Configurable I/O Pairing Relationship
  • DO Safe Value Setting for Wireless Disconnection Monitoring
  • Surge and ESD Protection
  • DIN-Rail Mountable

Introduction

ZT-20xx-IOG series (referred to as ZT-IOG) is a series of ZigBee wireless communication module with Digital Input and Digital Output channels. The “IOG” in the ZT-IOG is the abbreviation for the I/O Group and means the multi-to-multi Pair-connection I/O modules. The ZT-2055-IOG module is one of the ZT-20xx-IOG series that provides both 8 digital input channels and 8 digital output channels. User can easily configure it as either a ZigBee Coordinator or a ZigBee Router via the external switches. The ZigBee Coordinator will serve as a message processing and distribution center. In other words, as long as any DI of any ZT-IOG module changes its channel state, it will immediately trigger an event and upload it to the ZigBee Coordinator for I/O updating logic calculations to determine the DO output states of the ZT-IOG system. Then, the ZigBee Coordinator will broadcast a message periodically to all ZT-IOG ZigBee Router modules for synchronizing all DO channel states to achieve the multi-to-multi I/O Pair-connection function.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) 4 kV for Power Line
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
Surge (IEC 61000-4-5) 3 kV for Power Line
LED Indicators
Status 1 x Power/Debug
1 x Communication
8 x Digital Input
8 x Digital Output
ZigBee
Antenna 2.4 GHz, 5 Omni-Directional
Max. Slaves 255
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (Default, FCC Certificated); Max. 19 dBm
Transmission Distance (LoS) 700 m (Typical)
Digital Input
Channels 8
Type Dry + Wet Contact
ON Voltage Level Dry: Close to GND
Wet: +10 VDC ~ +50 VDC
OFF Voltage Level Dry: Open
Wet: Max. +1 VDC
Input Impedance 10 KΩ
Overvoltage Protection ±70 VDC
Digital Output
Channels 8
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ 50 VDC
Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 2.5 W
Mechanical
Dimensions (mm) 33 x 96 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ZT-2055-IOG     CR  ZigBee I/O Group (Pair-connection) Module with 8-ch Isolated DI and 8-ch Isolated DO (Full-function) (RoHS)
(Asia Only)
