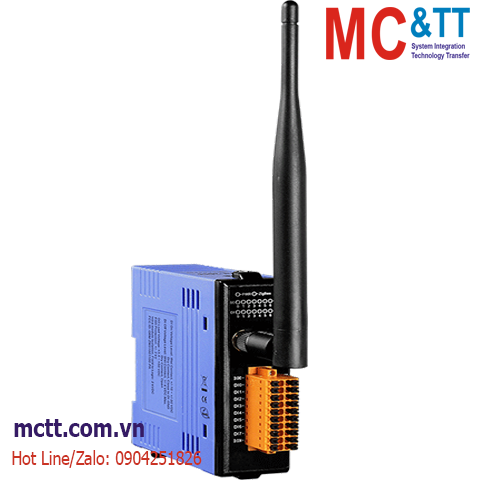

Module ZigBee 8 kênh DI + 8 kênh DO ICP DAS ZT-2055-IOP CR
Feature
- ISM 2.4 GHz Operating Frequency
Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
Wireless Transmission Range up to 700 m (Default)
Adjustable RF Transmission Output Power
8 Channels Pair-connection of the Digital Input and Digital Output
DO Safe Value setting for Wireless Disconnection Monitoring
Configurable I/O Pairing Number
Surge and ESD Protection
Supports AES-128 Encryption for the Wireless Communication
DIN-Rail Mountable
Introduction
The ZT-2055-IOP module is a ZigBee coordinator that offers 8 isolated channels for digital input and 8 isolated channels for digital output. An embedded I/O channel binding function means that there is no need to use an external controller. The status of each channel is bound to a remote channel of the ZT-2055. The ZT-2055-IOP continually updates the status of the DO channel of the remote ZT-2055 based on its own DI channels. It also reads the status of the DI channel of the remote ZT-2055 to synchronize its own DO channels. The ZT-2055-IOP also provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any difficult wiring environment.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
4 kV for Power Line |
| ESD (IEC 61000-4-2) |
4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power
1 x Communication
8 x Digital Input
8 x Digital Output |
| ZigBee |
| Antenna |
2.4 GHz, 5 Omni-Directional |
| Certifications |
CE/FCC, FCC ID |
| Max. Slaves |
255 |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (FCC Certificated) |
| Transmission Distance (LoS) |
700 m (Typical) |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Dry Contact,
Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source
Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: Max. +4 VDC |
| Input Impedance |
10 KΩ |
| Overvoltage Protection |
±70 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ 50 VDC |
| Load Current |
650 mA/Channel |
| Overvoltage Protection |
1.4 A (with short-circuit protection) |
| Overload Protection |
60 VDC |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
Max. 2.5 W |
| Mechanical |
| Dimensions (mm) |
33 x 96 x 110 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2055-IOP CR |
ZigBee I/O Pair-connection Module with 8-ch Isolated DI and 8-ch DO (ZigBee Coordinator) (RoHS)
(Asia Only) |
