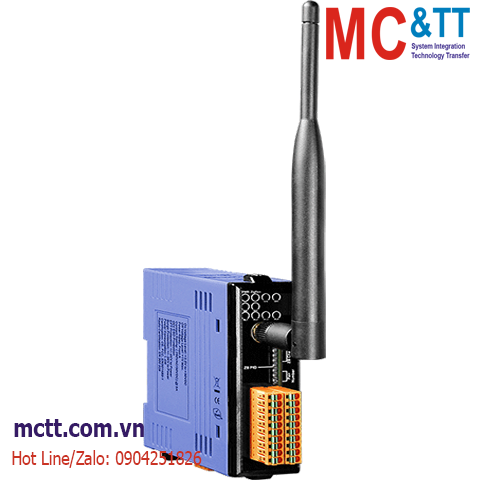

Module ZigBee 4 kênh DI + 4 kênh Power Relay ICP DAS ZT-2060-IOP CR

Feature

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • Automatic 4 Channels Pair-connection of the Digital Input and Relay Output
  • DO Safe Value setting for Wireless Disconnection Monitoring
  • Configurable I/O Pairing Number
  • Surge and ESD Protection
  • Supports AES-128 Encryption for the Wireless Communication
  • DIN-Rail Mountable

Introduction

The ZT-2060-IOP module is a ZigBee coordinator that provides both 4-channel digital input and 4-channel digital output. An embedded I/O channel binding function means that there is no need to use an external controller. The status of each channel is bound to a remote channel of the ZT-2060. The ZT-2060-IOP continually updates the status of the DO channel of the remote ZT-2060 based on its own DI channels. It also reads the status of the DI channel of the remote ZT-2060 to synchronize its own DO channels. The ZT-2060-IOP also provides external DIP switches for easy Configuration, which can be used to synchronize the digital signals in any difficult wiring environment.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) 4 kV for Power Line
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
LED Indicators
Status 1 x Power
1 x Communication
8 x Digital Input
8 x Digital Output
ZigBee
Antenna 2.4 GHz, 5 Omni-Directional
Certifications CE/FCC, FCC ID
Max. Slaves 255
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certificated)
Transmission Distance (LoS) 700 m (Typical)
Digital Input
Channels 4
Type Isolated, Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Wet: +3.5 VDC ~ +30 VDC
OFF Voltage Level Wet: Max. +1 VDC
Input Impedance 3 kΩ, 0.33 W
Relay Output
Channels 4
Type Power Relay, Form A
Contact Rating 5 A @ (250 VAC/30 VDC)
Operate Time Max. 10 ms at Rated Voltage
Release Time Max. 5 ms at Rated Voltage
Electrical Endurance Resistive Load: 100,000 ops. min. (10 ops/minute)
Mechanical Endurance At No Load: 20,000,000 ops. min. (300 ops/minute)
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 1.4 W
Mechanical
Dimensions (mm) 33 x 94 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ZT-2060-IOP     CR  ZigBee I/O Pair-connection Module with 4-ch Isolated DI and 4-ch Power Relay (ZigBee Coordinator) (RoHS)
(Asia Only)
