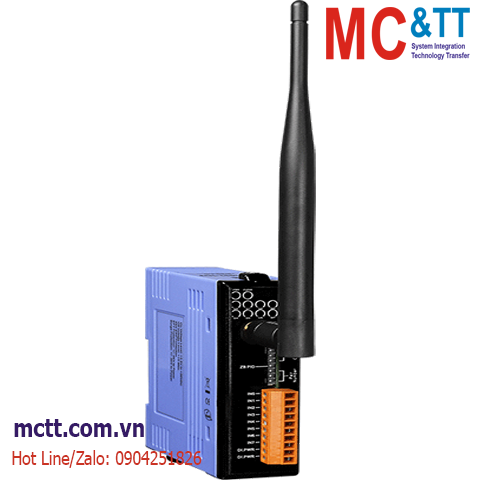

Module ZigBee 8 kênh DI ICP DAS ZT-2052-IOP CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- 8 Channels Pair-connection of the Digital Input
- DO Safe Value setting for Wireless Disconnection Monitoring
- Configurable I/O Pairing Number
- Surge and ESD Protection
- Supports AES-128 Encryption for the Wireless Communication
- DIN-Rail Mountable
Introduction
The ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module of ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller. The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized. The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
| Isolation |
| Intra-module Isolation |
3000 Vrms |
| EMS Protection |
| ESD (IEC 61000-4-2) |
+/-4 kV contact for each channel |
| LED Indicators |
| Status |
1 x Power and Communication
8 x Digital Input |
| ZigBee |
| Antenna |
2.4 GHz, 5 Omni-Directional |
| Max. Slaves |
255 |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (FCC Certificated) |
| Transmission Distance (LoS) |
700 m (Typical) |
| Digital Input |
| Channels |
8 |
| Type |
Wet Contact |
| ON Voltage Level |
Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level |
Wet: Max. +1 VDC |
| Input Impedance |
3 kΩ, 0.33 W |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
Max. 1 W |
| Mechanical |
| Dimensions (mm) |
33 x 88 x 110 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2052-IOP CR |
ZigBee I/O Pair-connection Module with 8-ch Isolated DI (ZigBee Coordinator) (RoHS)
(Asia Only) |
