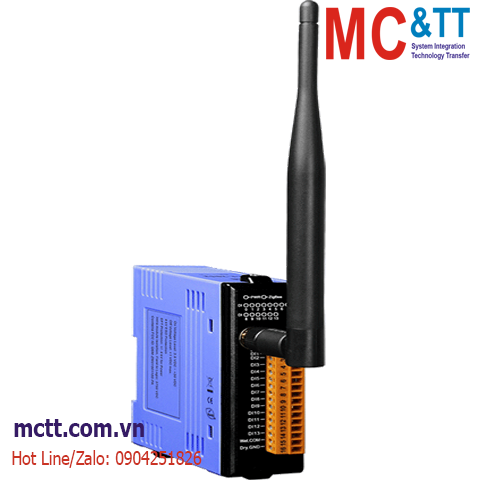

Module Zigbee 14 kênh DI ICP DAS ZT-2053-IOG CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Supports AES-128 Encryption for the Wireless Communication
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- Physical Pair-connection Channels of 14 Digital Input
- 280 Logical Pair-connection Channels Supported
- Configurable I/O Pairing Relationship
- Surge and ESD Protection
- DIN-Rail Mountable
Introduction
ZT-20xx-IOG series (referred to as ZT-IOG) is a series of ZigBee wireless communication module with Digital Input and Digital Output channels. The “IOG” in the ZT-IOG is the abbreviation for the I/O Group and means the multi-to-multi Pair-connection I/O modules. The ZT-2053-IOG module is one of the ZT-20xx-IOG series that provides 14 digital input channels. User can easily configure it as either a ZigBee Coordinator or a ZigBee Router via the external switches. The ZigBee Coordinator will serve as a message processing and distribution center. In other words, as long as any DI of any ZT-IOG module changes its channel state, it will immediately trigger an event and upload it to the ZigBee Coordinator for I/O updating logic calculations to determine the DO output states of the ZT-IOG system. Then, the ZigBee Coordinator will broadcast a message periodically to all ZT-IOG ZigBee Router modules for synchronizing all DO channel states to achieve the multi-to-multi I/O Pair-connection function.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
4 kV for Power Line |
| ESD (IEC 61000-4-2) |
4 kV Contact for Power Line, Communication Line and each Channel, 8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
3 kV for Power |
| LED Indicators |
| Status |
1 x Power/Debug
1 x Communication
14x Digital Input |
| ZigBee |
| Antenna |
2.4 GHz, 5 Omni-Directional |
| Max. Slaves |
255 |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (Default, FCC Certificated); Max. 19 dBm |
| Transmission Distance (LoS) |
700 m (Typical) |
| Digital Input |
| Channels |
14 |
| Type |
Dry + Wet Contact |
| ON Voltage Level |
Dry: Close to GND
Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level |
Dry: Open
Wet: Max. +1 VDC |
| Input Impedance |
3 kΩ, 0.33 W |
| Effective Distance |
500 M Max. |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
Max. 0.72 W |
| Mechanical |
| Dimensions (mm) |
33 x 87 x 110 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2053-IOG CR |
ZigBee I/O Pair-connection Module with 14-ch Isolated DI (ZigBee Coordinator) (RoHS)
(Asia Only) |
