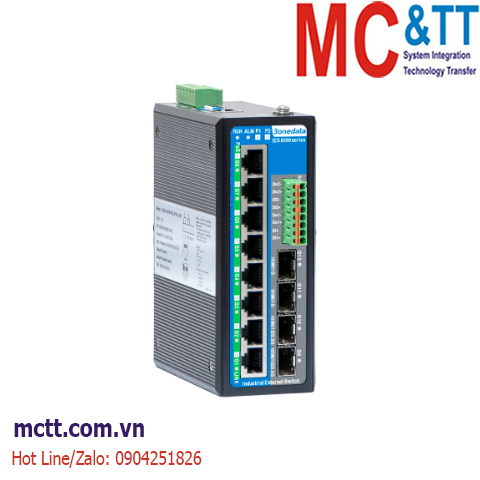

Switch công nghiệp quản lý 8 cổng Gigabit PoE + 2 cổng quang Gigabit SFP + 2 cổng quang 2.5G SFP 3Onedata IES6300-8GP2GS2HS-2P24-120W

Series IES6300 là thiết bị chuyển mạch Ethernet công nghiệp quản lý lớp 2 với 10/12 cổng Gigabit. Sê-ri này cung cấp 10 sản phẩm và hỗ trợ nhiều loại giao diện bao gồm cổng đồng Gigabit, cổng đồng Gigabit PoE, khe cắm Gigabit SFP, khe cắm 2.5G SFP và cổng I/O và hỗ trợ bốn bộ nguồn bao gồm 24VDC PoE, 48VDC PoE, 12~48VDC và 220VAC/DC. Sản phẩm hỗ trợ gắn DIN-Rail hoặc giá treo tường để đáp ứng các yêu cầu của các cảnh ứng dụng khác nhau. Nguồn điện PoE tuân theo tiêu chuẩn giao thức của IEEE802.3af/at..

Hệ thống quản lý mạng hỗ trợ các giao thức mạng và tiêu chuẩn công nghiệp khác nhau, chẳng hạn như STP/RSTP, 802.1Q VLAN, QoS, LLDP, Cấu hình PoE, IGMP Static Multicast, Port Trunking, Port Mirroring, v.v. Nó cũng sở hữu các chức năng quản lý hoàn chỉnh, bao gồm Cấu hình cổng , Thống kê cổng, Kiểm soát truy cập, Giám sát Modbus TCP, Chẩn đoán mạng, Cấu hình nhanh, Nâng cấp trực tuyến, v.v. và hỗ trợ CLI, WEB, Telnet, SNMP và các phương thức truy cập khác. Nó có thể cung cấp cho người dùng trải nghiệm tốt với thiết kế giao diện hệ thống quản lý mạng thân thiện, thao tác đơn giản và thuận tiện.

Bộ nguồn DC có hai mạch cấp nguồn độc lập có thể đảm bảo hoạt động bình thường của thiết bị khi một nguồn điện bị hỏng. Thiết kế của công tắc DIP có thể thực hiện khôi phục cài đặt gốc của thiết bị. Khi nguồn điện DC hoặc cổng bị lỗi liên kết, đèn báo ALM sẽ sáng và gửi cảnh báo, trong khi đó, thiết bị cảnh báo được kết nối với rơle sẽ gửi cảnh báo để khắc phục sự cố hiện trường nhanh chóng. Phần cứng sử dụng thiết kế không quạt, tiêu thụ điện năng thấp và nhiệt độ rộng, đã vượt qua các bài kiểm tra tiêu chuẩn công nghiệp nghiêm ngặt và phù hợp với môi trường công nghiệp với các yêu cầu khắc nghiệt đối với EMC. Nó có thể được sử dụng rộng rãi trong vùng phủ sóng AP, giao thông đường sắt, thành phố thông minh, thành phố an toàn, năng lượng mới, lưới điện thông minh, sản xuất thông minh và các lĩnh vực công nghiệp khác.

Tính năng

  • Hỗ trợ 2 khe cắm 2.5G SFP, 2 khe cắm Gigabit SFP (tùy chọn), 8 cổng đồng Gigabit (PoE tùy chọn), 2 DI và 2 DO (tùy chọn)
  • Công nghệ Ring, hỗ trợ vòng đơn, vòng khớp nối, chuỗi, Dual-homing, thời gian phục hồi tự động khi lỗi mạng <20ms
  • Hỗ trợ 4 nguồn cấp tùy chọn: 24VDC PoE, 48VDC PoE, 12~48VDC và 220VAC/DC
  • Mức tiêu thụ điện năng PoE tối đa của sản phẩm 24VDC là 120W và mức tiêu thụ điện năng PoE tối đa của sản phẩm 48VDC là 240W
  • Hỗ trợ dải nhiệt độ hoạt động rộng -40~75℃

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+

Management SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Snooping, DHCP Relay, Static MAC Address, LLDP, Storm Suppression, User Password, Login Method, File Management, Log Management, Port Statistics
Security User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, IO Alarm, Loop Protection
Switch Function 802.1Q VLAN, Static Aggregation, LACP
Unicast / Multicast IGMP Snooping, Unicast MAC
Redundancy Protocol Ring, STP/RSTP/MSTP, ERPS
Time Management NTP, Time Zone Configuration
Troubleshooting Ping, Cable Detection, DDMI, Port Mirroring
PoE The maximum power of single PoE port: 30W
The power supply pin of PoE: V+, V-, V+, V- correspond to Pin 1,2,3,6
Interface

Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE

Gigabit SFP Slot : 100/1000Base-X self-adaption or forced mode, SFP slot

2.5G SFP Slot: 100/1000/2.5GBase-X self-adaption or forced mode SFP slot

I/O port (optional): Support 2 inputs and 2 outputs, 8-pin 3.81mm pitch terminal blocks, support dry contact input, relay-type output

Console port: CLI command line management port(RS-232), RJ45

Alarm Port: 6-pin 5.08mm pitch terminal blocks, relay occupies 2 pins and 1 relay alarm information output is supported, the current load capability is 1A@30VDC or 0.3A@125VAC

LED Indicator Running indicator, alarm indicator, power supply indicator, interface indicator, PoE indicator (optional), I/O output indicator (optional), I/O input indicator (optional)
Switch Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 4Mbit

Backplane bandwidth: 30G

Switch time delay: <10μs

Power Supply

IES6300-8GT2GS2HS-2P48, IES6300-8GT2HS-2P48, IES6300-8GT2GS2HS-2DI2DO-2P48:

Voltage range: 12~48VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power supply quantity: dual power supply redundancy backup
Connection protection: non-polarity
Overcurrent protection: 3A

IES6300-8GP2GS2HS-2P24-120W, IES6300-8GP2HS-2P24-120W:

Power supply range: 24VDC PoE
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power supply quantity: dual power supply redundancy backup
Connection protection: anti-reverse connection
Overcurrent protection: 12A

IES6300-8GP2GS2HS-2P48-240W, IES6300-8GP2HS-2P48-240W, IES6300-8GP2GS2HS-2DI2DO-2P48-240W:

Power input: 48VDC PoE
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
Power supply quantity: dual power supply redundancy backup
Connection protection: anti-reverse connection
Overcurrent protection: 5A

IES6300-8GP2GS2HS-P220, IES6300-8GP2HS-P220:

Power input: 220VAC/DC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)

Power Consumption

IES6300-8GT2GS2HS-2P48, IES6300-8GT2GS2HS-2DI2DO-2P48:
No-load: ≤ 5.76W@48VDC
Full-load: ≤12W@48VDC

IES6300-8GT2GS2HS-2P48-240W, IES6300-8GT2GS2HS-2P24-120W, IES6300-8GP2GS2HS-2DI2DO-2P48-240W:
No-load: ≤ 5.76W@48VDC
Full-load: ≤ 132W@24VDC (with 120W PoE load)
≤ 252W@48VDC (with 240W PoE Load)

Environmental Limit Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%~95% (no condensation)
Physical Characteristic Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Weight: ≤ 0.78kg
Dimension (W x H x D): 53mm×138mm×110mm
Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS
Warranty 3 years

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models Gigabit Ethernet SFP Slot I/O Port PoE Power Power Supply
Non-PoE PoE Gigabit 2.5G Input Range Quantity
IES6300-8GT2GS2HS-2P48 8 2 2 12~48VDC 2
IES6300-8GP2GS2HS-2P24-120W 8 2 2 120W 24VDC 2
IES6300-8GP2GS2HS-2P48-240W 8 2 2 240W 48VDC 2
IES6300-8GT2GS2HS-P220 8 2 2 220VAC/DC 1
IES6300-8GT2HS-2P48 8 2 12~48VDC 2
IES6300-8GP2HS-2P24-120W 8 2 120W 24VDC 2
IES6300-8GP2HS-2P48-240W 8 2 240W 48VDC 2
IES6300-8GT2HS-P220 8 2 220VAC/DC 1
IES6300-8GT2GS2HS-2DI2DO-2P48 8 2 2 2 12~48VDC 2
IES6300-8GP2GS2HS-2DI2DO-2P48-240W 8 2 2 2 240W 48VDC 2
