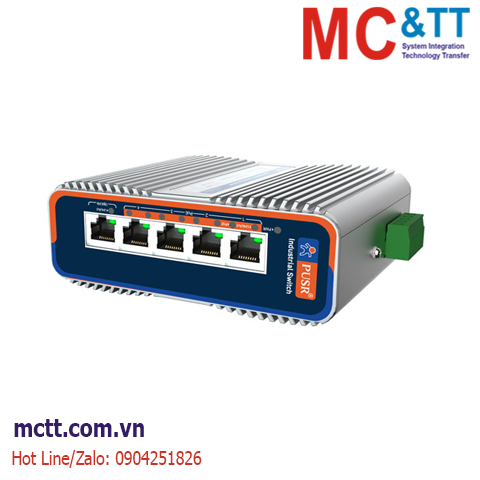

Switch công nghiệp 4 cổng Gigabit PoE + 1 cổng Gigabit Ethernet USR-ISG1005P
The industrial POE switch series integrates data transmission and power supply functions, supporting IEEE 802.3af/at standards with up to 30W per port. It offers flexible port configurations (5/8/16/24 ports) in both managed and unmanaged types. Managed models enable advanced network management like VLAN partitioning and QoS policies, while unmanaged ones feature plug-and-play simplicity. Widely used in security monitoring and industrial scenarios, these switches reduce cabling costs and enhance network deployment flexibility
Tính năng
- Unafraid of extreme temperatures: -40°C~85°C
- 3-way power supply guarantee (DC48 - 57V): DC interface for plug-and-play; dual power terminal redundant power supply.
- High-quality aluminum alloy shell: Efficient heat dissipation.
- Industrial quality: 6KV lightning strike resistance design.
- DIN rail mounting: Compact size, easy to install.
- IP40 protection: Fully sealed, impervious to wind and sand.
Thông số kỹ thuật
| Model No. |
USR-ISG005P |
| 10/100BASE-TX Port |
5 port RJ-45 auto-MDI / MDI-X |
| PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1-4 port support PoE |
|
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at) |
| PoE port Auto detect AF/AT devices |
| Output Voltage: DC48V |
| Power Pin Assignment:1/2+;3/6- |
| Power Type: End-span( Mid-span optional) |
| Performance Specification |
Bandwidth: 14Gbps
Packet Buffer Memory:1.2Mbit
Packet Forwarding Rate:10.5Mpps
MAC Address Table: 2K |
| Installation |
DIN rail |
| Maximum Frame Size |
9000bytes packet size |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure |
IP40 aluminum housing |
| LED Indicator |
Power: Red
Ethernet: Yellow
POE: Green |
| Power Input |
48 to 57V DC |
| Surge protection |
±4KV |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Certification |
CE FCC Rohs compliance |
| MTBF |
>300,000hours |
| Dimensions (W x D x H) |
118 x 85.7 x 33.5 mm |
| Weight |
Product Weight: 0.36KG
Packing Weight: 0.46KG |
| Working Environment |
Working temperature: -40～85℃ ;
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation) |
Download
Datasheet
Thông tin đặt hàng
| USR-ISG1005P |
4-Port RJ45 PoE +1Port RJ-45 uplink Gigabit Industrial PoE Switch, 1000Mbps |
