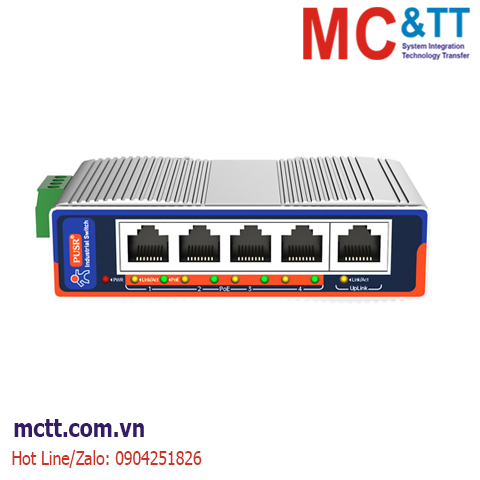

Switch công nghiệp 4 cổng PoE + 1 cổng Ethernet USR-ISF005P
Industrial PoE switch, 4 Port 10/100Mbps PoE ports + 1 port ethernet uplink , for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Tính năng
- 5-port 10/100Base-Tx RJ-45 with auto negotiation and auto-MDI/MDI-X function
- 4-Port PoE, 802.3at/af support, 30W max. each port
- 48V to 57V DC, redundant power input
- -40℃ to 85℃ operating temperature
- IP40 aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for powerline
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Thông số kỹ thuật
| Model No. |
USR-ISF005P |
| 10/100BASE-TX Port |
5 port RJ-45 auto-MDI / MDI-X |
| PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1-4 port support PoE |
|
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at) |
| PoE port Auto detect AF/AT devices |
| Output Voltage: DC48V |
| Power Pin Assignment:1/2+;3/6- |
| Power Type: End-span( Mid-span optional) |
| Performance Specification |
Bandwidth: 1.6 Gbps
Packet Buffer Memory:1 Mbit
Packet Forwarding Rate:1.2 Mpps
MAC Address Table: 2K |
| Installation |
DIN rail |
| Maximum Frame Size |
9000bytes packet size |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure |
IP40 aluminum housing |
| LED Indicator |
Power: Red
Ethernet: Yellow
POE: Green |
| Power Input |
48 to 57V DC |
| Surge protection |
±4KV |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Certification |
CE FCC Rohs compliance |
| MTBF |
>300,000hours |
| Dimensions (W x D x H) |
118 x 85.7 x 33.5 mm |
| Weight |
Product Weight: 0.36KG
Packing Weight: 0.46KG |
| Working Environment |
Working temperature: -40～85℃ ;
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation) |
Download
Datasheet
Thông tin đặt hàng
| USR-ISF005P |
4-Port RJ45 PoE +1Port RJ-45 uplink Industrial PoE Switch, 100Mbps |
