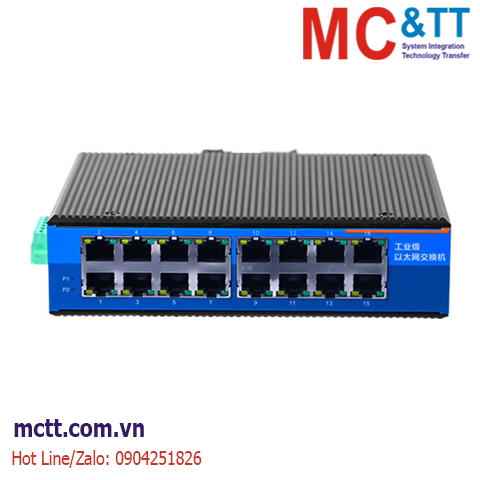

Switch công nghiệp 16 cổng PoE USR-ISF016P
USR-ISF016P an hardened 16-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
The USR-ISF016P series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance
The USR-ISF016P series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Tính năng
- 16-port 10/100Base-Tx RJ-45 with auto negotiation and auto-MDI/MDI-X function
- 16 port with 802.3af/at POE+ (port 1 to port 16)
- 48V to 57V DC, redundant power input
- -40℃ to 85℃ operating temperature
- IP40 Aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Thông số kỹ thuật
| Model No. |
USR-ISF016P |
| 10/100/1000Base-TX Port |
16 port RJ-45 auto-MDI / MDI-X |
| PoE port |
16 port with IEEE802.3af/at POE+ function ( port 1 to port 16) |
| Performance Specification |
Bandwidth: 1.6 Gbps
Packet Buffer Memory: 1Mbit
Packet Forwarding Rate: 1.2Mpps
MAC Address Table: 2K |
| Installation |
DIN rail |
| Maximum Frame Size |
9000 bytes packet size |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure |
IP40 aluminum housing |
| LED Indicator |
Power: Red
Ethernet: Yellow
POE: Green |
| Power Input |
48 to 57V DC redundant power |
| POE |
POE standard : IEEE802.3af/at
PoE ports: 1-16 port support
PoE Power Output: 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
Power Pin Assignment:1/2+;3/6-
Power Type: End-span (Mid-span optional) |
| Power Consumption |
3 watts |
| Surge protection |
±4KV |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| MTBF |
>300,000hours |
| Dimensions (W x D x H) |
175.6 x 135 x 45.5mm |
| Weight |
Product Weight: 0.36KG
Packing Weight: 0.46KG |
| Working Environment |
Working temperature: -40～85℃ ;
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation) |
Download
Datasheet
Thông tin đặt hàng
| USR-ISF016P |
16port 10/100Base-TX Industrial POE Switch |
