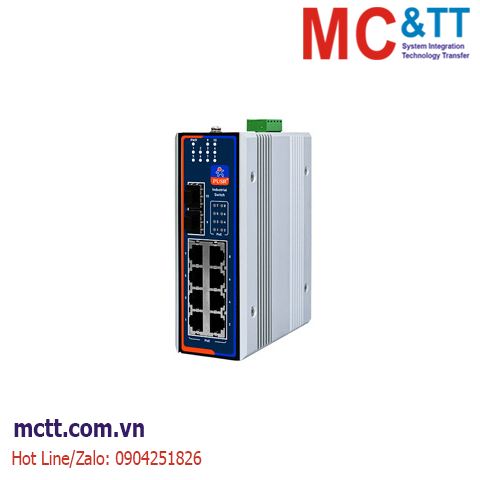

Switch công nghiệp 8 cổng Gigabit PoE + 2 cổng Gigabit SFP USR-ISG1208P-SFP
USR-ISG series are 5/8 ports 100/1000M unmanaged industrial Ethernet switches. For hardware, the switches adopt dual power, fanless, wide temperature and voltage design, and has passed rigorous industrial standard tests, which can suit for the industrial scene environment. It can be widely used in smart city, rail transit, security surveilance, new energy, and other industrial fields.
PUSR industrial switches adopts aluminum housing which can realize effective cooling without fan, and operate more quietly. WIth DIN rail mounting design, it can be installed on the DIN-rail, which is simple and convenient.
A wide operating temperature range of -40 ~ +85° C (-40° ~167° F) allows for installations in harsh environments with extreme hot or cold conditions.
With industrial lightning protection component for both power supply and network interface, the switches can effectively prevent the device from being damaged by lightning.
Tính năng
- Extreme Temperature, -40℃~+85℃
- Redundant Power Supply
- Industrial Grade Quality, Lighting Protection 6KV
- Aluminum Housing, Effective Cooling
- Dustproof Design, IP40 Protection
- Din-Rail Mounting, Easy to Installation
- Compact Size, Save Your Space
Thông số kỹ thuật
| Model |
USR-ISG1208P-SFP |
| Number of Ports |
10 |
| 10/100/1000M Adaptive |
8 |
| 1000M SFP Optical Port |
2 |
| Protection Level |
IP40 |
| Supported protocols |
IIEEE802.3af/at |
| Single port power |
Single - port PoE output ≤ 30W |
| Power Input |
DC 48~54V （Dual Power Supply Backup） |
| Power Consumption |
<15W |
| Operating Temperature |
-40～85°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Installation Method |
DIN Rail Type |
| Dimensions (L×W×H)mm |
140×110 ×50mm |
| Exchange Bandwidth |
20G |
| MAC Address Table |
4K |
Download
Datasheet
Thông tin đặt hàng
