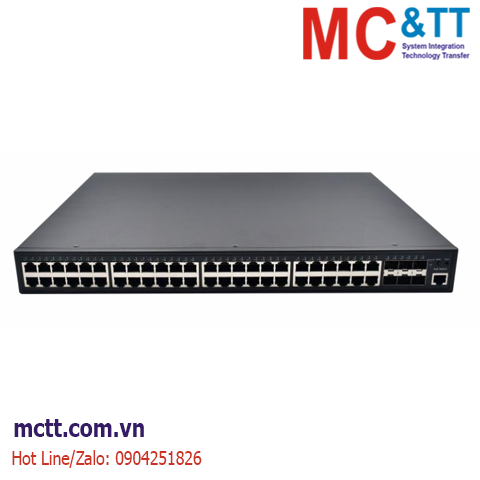

Switch quản lý Layer 3 với 48 cổng Gigabit PoE + 6 cổng 10G SFP+ 3Onedata ICS5000-C48GP6XS

Mã sản phẩm: ICS5000-C48GP6XS

Thương hiệu: 3onedata

Tình trạng:

54-port Layer 3 Ethernet PoE switch

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Switch quản lý Layer 3 với 48 cổng Gigabit PoE + 6 cổng 10G SFP+ 3Onedata ICS5000-C48GP6XS

The ICS5000-C48GP6XS is a three-layer managed 10 Gigabit hybrid PoE switch. 48 RJ45 ports are compatible with three types of networks: 10Base-T, 100Base-TX, and 1000Base-T, all of which have PoE power supply function, and 6 10 Gigabit port 10G SFP+optical ports, which can be used to connect upstream devices with higher bandwidth.

It supports IEEE802.3at standard and is downward compatible with 802.3af. It can be used as power over Ethernet equipment, and can automatically detect and identify the power receiving equipment that meets the standard, and power it through the network cable.

This product provides 10 Gigabit optical ports and gigabit electrical ports, which support the MDIMDI-X self identification function of cables. Supports wire speed forwarding for all ports, providing greater network flexibility. Adopting storage and forwarding technology, combined with dynamic memory allocation, ensures effective bandwidth allocation to each port. With flow control, when the flow control is turned on, the node can effectively avoid packet loss during transmission and reception. Easy to manage and maintain, meeting the networking and access requirements of enterprises, intelligent communities, hotels, office networks, and park networks. Built in high reliability and wide voltage input design power supply, even if the power grid voltage is unstable, it can ensure that the equipment can work normally.

Tính năng

Supports 48 gigabit electrical ports, 6 gigabit optical ports, and 1 Console port, among which the electrical port has PoE power supply function
Ethernet port supports full/half duplex, MDI/MDI-X adaptive function
Supports IEEE802.3at standard and is backward compatible with IEEE802.3af
Support QoS (Quality of Service), port mirroring, and link aggregation protocols
Supports automatic port flipping
Supports input voltage of 100-240VAC
Supports wide temperature operation from 0 to 45 ℃

Thông số kỹ thuật

Standards and protocols	IEEE 802.3i IEEE802.3af IEEE802.3at IEEE 802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3ae IEEE802.3az
Interface	Gigabit Ethernet port: 48 * 10/100/1000Mbps port adaptive RJ45 port, supporting MDI/MDI-X adaptation Gigabit optical port: 6 * 1000/1000Mbps port SFP+fiber optic interface
Indicator light	Power indicator light, system operation light, interface indicator light, POE status indicator light
Power waste	Maximum (PoE full load): 550W (220V/50Hz)
Exchange Properties	Transmission method: storage and forwarding MAC address: 32K Switching capacity: 216Gbps Packet forwarding rate: 160.704Mpps Package cache: 16Mbit Giant frame: 12KBytes PoE interface: 48 PoE ports compliant with IEEE802.3at/af standard Power supply pins: 1/2 (+), 3/6 (-) PoE output power: maximum: 450W
Basic function	Ethernet settings STP/RSTP/MSTP Broadcast Storm Control Port Mirror line rate MAC address filtering Port aggregation (static, Lacp) Giant frame
3 layer function	Anti ARP network management spoofing Filter IP ports IP and MAC static binding ARP Trust Port Supports three-layer forwarding Ping and Traceroute Support OSPF and RIP configurations Supports IPv4 and IPv6 static routing IP routing, uRPF, policy routing
Security policy	ACE capacity ACL4 QoS Flow control
VLAN	Port based VLAN 802.1Q VLAN GVRP Support VLAN based on MAC/protocol/IP subnet/policy/port VLAN-translation
Safety functions	Radius Tacacs+ Anti DOS attack dot1x Anti gateway ARP spoofing Anti ARP attacks Port security
Application protocol	DHCP Relay DHCP snooping DHCP Client/Server FTP/TFTP
Administration	HTTP WEB Management Telnet SSH Management Console
Other	LLDP IGMP Snooping MLD Snooping Support IP multicast Supports IGMP and PIM SNMPV1,V2c,V3 RMON 1,2,3,9 Energy saving POE
power supply	Input voltage: 100-240VAC, 50/60Hz, 520W built-in power supply
Work Environment	Working temperature: 0-45 ℃ Storage temperature: -40~70 ℃ Working humidity: 10%~90% (without condensation) Storage humidity: 5%~95% (without condensation)
Mechanical structure	Size (width × high × Depth: 440mm × 44mm × 330mm
