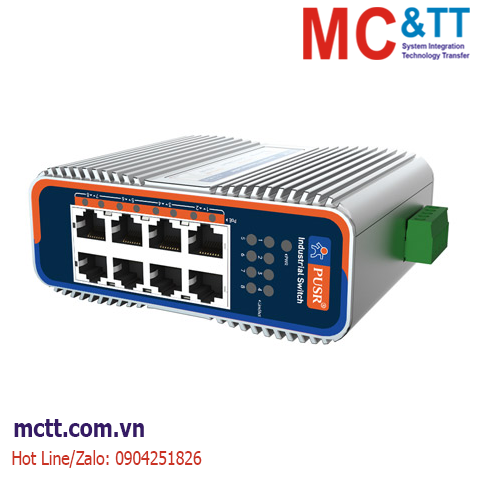

Switch công nghiệp 8 cổng Gigabit PoE USR-ISG1008P
The industrial POE switch series integrates data transmission and power supply functions, supporting IEEE 802.3af/at standards with up to 30W per port. It offers flexible port configurations (5/8/16/24 ports) in both managed and unmanaged types. Managed models enable advanced network management like VLAN partitioning and QoS policies, while unmanaged ones feature plug-and-play simplicity. Widely used in security monitoring and industrial scenarios, these switches reduce cabling costs and enhance network deployment flexibility
Tính năng
- Unafraid of extreme temperatures: -40°C~85°C
- 3-way power supply guarantee (DC48 - 57V): DC interface for plug-and-play; dual power terminal redundant power supply.
- High-quality aluminum alloy shell: Efficient heat dissipation.
- Industrial quality: 6KV lightning strike resistance design.
- DIN rail mounting: Compact size, easy to install.
- IP40 protection: Fully sealed, impervious to wind and sand.
Thông số kỹ thuật
| Model No. |
USR-ISG1008P |
| Number of ports |
8 |
| 10/100/1000M adaptive electrical port |
8 |
| 1000M SFP optical port |
/ |
| Exchange capacity |
16G |
| MAC address table |
1K |
| Protection level |
IP40 |
| Supported protocols |
IIEEE802.3af/at |
| Single port power |
Single-port PoE output ≤ 30W |
| Power input |
DC48-57V DC/terminal power supply （Dual Power Supply Backup） |
| Total Power Consumption |
<3W |
| Installation method |
DIN Rail Type |
| Dimensions (W x D x H) |
118*96*47.5mm |
| Working Environment |
Working temperature: -40～85℃ ;
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation) |
Download
Datasheet
Thông tin đặt hàng
