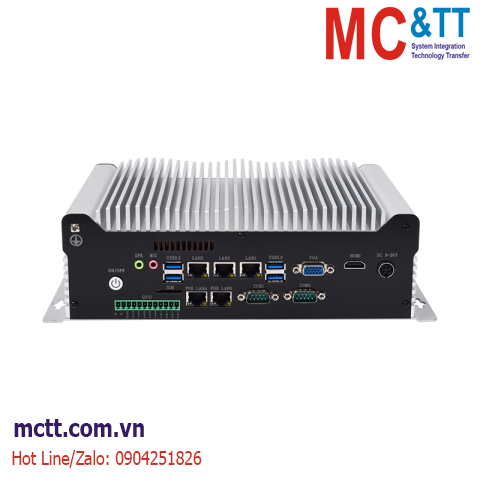

Máy tính nhúng công nghiệp không quạt (5 LAN + 2 COM) TP-IPC IBOX-604-5L2C2P

Model

IBOX-604-5L2C2P

Supported OS

Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT

Chipset

Intel® Z370 Chipset

CPU

Processor Socket

Intel® Desktop Processors Socket LGA1151

Series

6th Gen. Intel® Core™ Processor

Intel® Celeron® G4900 Processor

7th-9th Gen. Intel® Core™ Processor

TDP

Up to 65W

54W

Up to 65W

Graphic

Intel® HD Graphics 530

Intel® UHD Graphics 610

7th Gen: Intel® HD Graphics 630

8th/ 9th Gen: Intel® UHD Graphics 630

RAM

Type&Qty

2* SO-DIMM Socket

2* SO-DIMM Socket

2* SO-DIMM Socket

Frequency

DDR4-1866/2133 MHz

DDR4-2400 MHz

DDR4-2400/2666 MHz

Capacity

Up to 32GB

Up to 32GB

Up to 32GB

Storage Device

SATA

1* 2.5″ SATA3.0 Bay on board (6Gb/s); 3* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5)

MSATA

1* mSATA3.0 slot on board (6Gb/s)

M.2

1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD

I/O Interface

COM

2* Isolated RS232/RS485 with TVS (Switchable by BIOS); 2* RS232 header shared with GPIO

Ethernet

2* GbE PoE LAN support IEEE802.3af, Intel® i211; (Option A: RJ45 connector; Option B: M12 connector) 3* GbE LAN ports, Intel® i211, RJ45 connector

USB

8* USB 3.0; 1* Internal Connector

Video & Audio

1* HDMI, Support 4096×2304@24Hz, (Optional 1* DP, Support 4096 x 2304@60Hz); 1* VGA, Support 1920×1200@60Hz;

Audio

1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* External SIM card slot connected to M.2 B-key slot

Power Supply

9V-36V DC; 1* 4-Pin DC Power Jack (Circular DIN Connectors, Full-Shield)

Other

1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm); 1* Auto-On Switch; 1* TPM header (2*10-pin)

Extended Capabilities

Additional Internal Interface

1* M.2 3052 B-key with SIM card slot;(USB3.0)

1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT); 1* Full Size Mini-PCIe (PCIe+USB2.0)

Environment

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

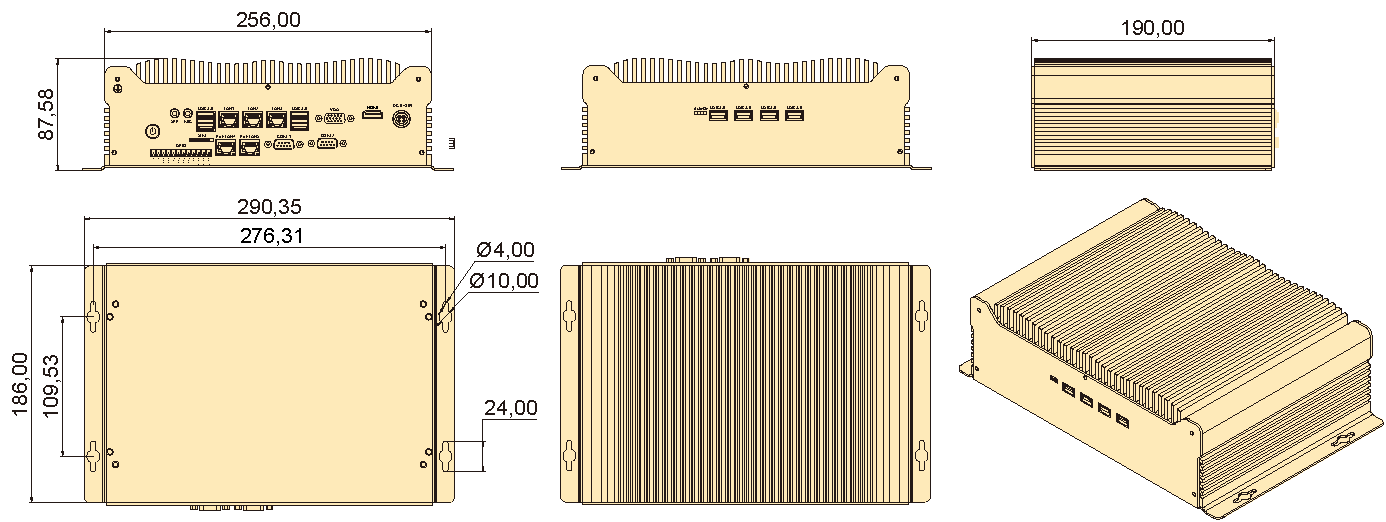

Physical Characteristics

Dimensions

290.35* 152.58* 186 mm (W* H* D)

Net Weight

3.9 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequen- cy

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I3-6100

Skylake

2

4

–

3.70 GHz

3 MB Intel® Smart Cache

51 W

DDR4

Intel® HD Graphics 530

Intel® Core™ I5-6500

Skylake

4

4

3.60 GHz

3.20 GHz

6 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 530

Intel® Core™ I7-6700

Skylake

4

8

4.00 GHz

3.40 GHz

8 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 530

Intel® Celeron® G4900

Coffee Lake

2

2

–

3.10 GHz

2 MB Intel® Smart Cache

54 W

DDR4

Intel® UHD Graphics 610

Intel® Core™ I3-7100

Kaby Lake

2

4

–

3.90 GHz

3 MB Intel® Smart Cache

51 W

DDR4

Intel® HD Graphics 630

Intel® Core™ I5-7400

Kaby Lake

2

4

3.50 GHz

3.00 GHz

6 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 630

Intel® Core™ I7-7700

Kaby Lake

4

8

4.20 GHz

3.60 GHz

8 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 630

Intel® Core™ I3-8100

Coffee Lake

4

4

–

3.60 GHz

6 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-8500

Coffee Lake

6

6

4.10 GHz

3.00 GHz

9 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-8700

Coffee Lake

6

12

4.60 GHz

3.20 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I3-9300

Coffee Lake

4

4

4.30 GHz

3.70 GHz

8 MB Intel® Smart Cache

62 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-9400

Coffee Lake

6

6

4.10 GHz

2.90 GHz

9 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-9700

Coffee Lake

8

8

4.70 GHz

3.00 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I9-9900

Coffee Lake

8

16

5.00 GHz

3.10 GHz

16 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Optional Items

Max Qty

Description

Isolated RS-232

2

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-232

2

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-422

2

DB9 or Phoenix Terminal connector, connected by header with a transform module

Non-Isolated RS-485

2

DB9 or Phoenix Terminal connector, connected by header with a transform module

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO with current loading, 9-26V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO, 0-5V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO with 7-in & 8-out, 12-24V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

4G Module

1

Connected by Mini-PCIe or M.2 interface

5G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface, M.2 interface or internal USB interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface

Dual channel CAN-Bus Module

2

Connected by Mini-PCIe or M.2 interface

Dual GbE PoE LAN Module

1

Connected by Mini-PCIe Interface

Ignition Switch Module

1

Phoenix Terminal connector, connected by internal power switch and 4-pin ATX power connector
