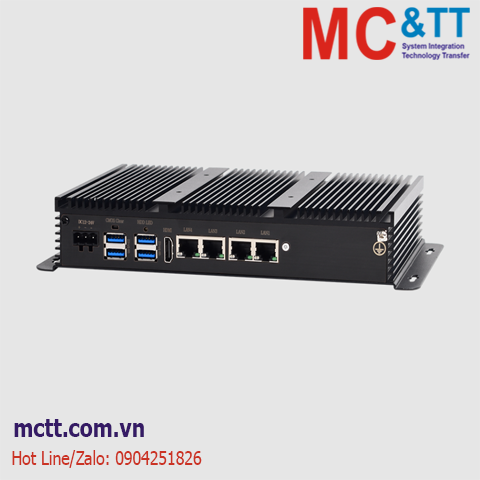

Model |
IBOX-104V2-4L6C-10TH |
|
Supported OS |
Windows 10/11 64bit, Windows 10 IoT, Linux |
|
CPU |
Ice Lake |
Intel® Core™ I5-1035G1 |
Intel® Core™ I7-1065G7 |
|
Frequency |
Max Turbo Fre. 3.60GHz; Base Fre. 1.00GHz |
Max Turbo Fre. 3.90GHz; Base Fre. 1.30GHz |
|
Cores & Threads |
4* Cores, 8 Threads |
4* Cores, 8 Threads |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
Intel® Iris® Plus Graphics |
|
RAM |
SO-DIMM |
1* Non-ECC SO-DIMM Slot, support DDR4-3200MHz, up to 32GB, Single channel |
|
Extended
Capabilities |
M.2 M-key |
1* M.2 M-key Slot (PCIe x4/ SATA Auto Detect, Support PCIe x4 NVMe/ SATA SSD , 2280) |
|
SATA |
1* SATA3.0 7P Connector (With 1 * SATA Power Wafer) |
|
Mini PCIe |
1, Full Size Mini-PCIe with a Sim Card slot wafter, PCIe/SATA+USB2.0, default PCIe+ USB2.0 Support 4G/ WiFi (USB2.0 signal for MPCIE1 colay with F_USB3; MPCIE1 PCIE or SATA Signal Selected by jumper) |
|
M.2 E-key |
1, M.2 E-Key 2230, PCIE+USB2.0+CNVi, default PCIe+ USB2.0+ CNVi, support WiFi+ BT+ CNVi Module
(PCIe signal colay with LAN4. (BOM selectable) , USB2.0 signal for M.2_KEYE_WLAN1 colay with F_USB3.) |
|
I/O INTERFACE |
COM |
2* RS232 wafter, full Lines, COM1-2, DCD/5V and RI/12V selected by resistors, optional DB9 connector; 2* TTL/RS232 wafter, 2Lines, COM3-4, selected by BOM , default RS232, optional DB9 connector;
2* TTL/RS485 wafter, 2Lines, COM5-6, selected by BOM, default RS485, optional DB9 connector |
|
Ethernet |
2/3/4* Intel® i210 GbE LAN (10/100/1000 Mbps, RJ45);
(2* GbE LAN By default, optional with 3 or 4 GbE LAN, RJ45, LAN4 is colay with PCIe signal of M.2 E-key slot) |
|
USB |
4 * USB3.0 (TYPE-A, Rear IO); 4 * USB2.0 (Wafer, Internal, USB2.0 signal for F_USB3 colay with M.2_KEYE_WLAN1 and MPCIE1.) |
|
Video |
1* HDMI1.4, max 4096*2160@30Hz |
|
Audio |
Realtek Audio HAD Codec, 1 * Line-Out + MIC 2in1 3.5mm Jack, 1* Audio Wafter |
|
SIM |
1* Built-in SIM card slot wafter connected to Mini PCIe slot |
|
Power Supply |
1* DC 12-24V Power Input 3P 5.08mm Terminal Block |
|
Other |
1* 8-bit GPIO wafter; 1* Remote Switch wafter; 1* Reset wafter; 1* PWR LED; 1* HDD LED; 1 * CMOS Clear button |
|
Environment |
Operating Temp. |
-10 ~ 50 °C w/ 0.7m/s Airflow |
|
Storage Temp. |
-40 ~ 85 °C (-40~185 ° F) |
|
Relative
Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical
Characteristics |
Dimensions |
250* 44* 153 mm (W* H* D) (It has a higher version with 49mm solution) |
|
Net Weight |
1.5 KG |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
