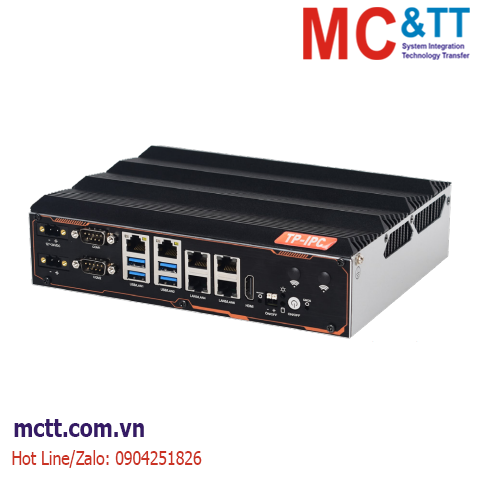

Máy tính công nghiệp không quạt Intel Core™ i7/ i5 /i3 Gen 6-9th (6 Lan + 2 COM) TP-IPC AEOLUS-SV9-6L2C
AEOLUS-SV9-6L2C is a multi LAN industrial PC designed for high-density Ethernet connectivity and stable edge computing. Built on Intel® 6th–9th Gen Core™ desktop processors, it provides reliable performance for industrial networking, automation control, and edge gateway applications where multiple LAN ports and long-term stability are required.
With six Intel® Gigabit LAN ports, flexible serial communication, wireless expandability, and industrial-grade power and thermal design, this system is well suited for industrial gateways, automation controllers, transportation systems, security platforms, and distributed edge computing deployments.
Tính năng
- Multi LAN industrial PC with 6× Intel® Gigabit Ethernet ports, supporting Wake-on-LAN and PXE for industrial networking and gateway deployment
- Supports Intel® 6th–9th Gen Core™ i7 / i5 / i3 desktop processors with up to 65W TDP for stable industrial workloads
- Dual RS232 / RS485 serial ports, switchable via BIOS or hardware switch, ideal for automation and field device integration
- Industrial-grade thermal design with active cooling and copper heat pipes, ensuring continuous operation under sustained load
- Mini-PCIe expansion supporting 4G LTE and Wi-Fi modules for remote monitoring and distributed edge systems
- Wide-range DC input (12V / 19V / 24V) with protection against over-voltage and reverse polarity
- Compact, deployment-friendly chassis suitable for control cabinets, industrial gateways, and edge computing nodes
Thông số kỹ thuật
|
Model |
AEOLUS-SV9-6L2C |
|
Supported OS |
Win7, Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS), Win 10 IoT |
|
Chipset |
Model |
Intel® H110 Chipset, TDP 6W |
|
vPRO Tech |
Non-supported |
|
CPU |
Socket |
Intel® Desktop Processors Socket LGA1151 |
|
Series |
6th-9th Gen. Intel® Core™ i7/ i5 /i3 Processor |
|
TDP |
Up to 65W |
|
Graphic |
Intel® HD Graphics 530 for 6th Gen. processor |
Intel® HD Graphics 630 for 7th Gen processor |
Intel® UHD Graphics 630 for 8-9th Gen processor |
|
BIOS |
AMI UEFI BIOS |
|
RAM |
SO-DIMM |
2* Non-ECC DDR4 2666 MHz SO-DIMM Socket, Capacity up to 64GB; |
|
Storage Device |
SATA |
1* SATA3.0 connector (6Gb/s) |
|
M.2 |
1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD |
|
I/O Interfacew |
COM |
2* RS232/RS485, switchable via switches or BIOS |
|
Ethernet |
5* Intel i210-AT GbE LAN, 1* Intel i219-V GbE LAN; Supports wake-on-LAN, PXE |
|
USB |
4* USB 3.0;
1* Internal USB 2.0;
2* 4-Pin USB 2.0 internal header |
|
Video |
1* HDMI (Max Resolution: 3840×2160 @30Hz); |
|
Audio |
1* Mic-in + Line-out wafer |
|
SIM |
1* Nano SIM connected to Mini-pcie, support 4G wireless |
|
Power Supply |
DC 12V/19V/24V, Auto detected, support RVP/OVP/OCP; 2* 2-PIN green connector, 5.08mm |
|
Extended
Capabilities |
Additional
Internal Interface |
1* Full Size Mini-PCIe1 slot, PCIE x1 GEN3 + USB 2.0, optional CAN/LAN/WiFi ect.
1* Full Size Mini-PCIe (USB2.0), support 4G; |
|
Environment |
Operating Temp. |
-10 ~ 60 °C w/ 0.7m/s Airflow |
|
Storage Temp. |
-20 ~ 75 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @95%, Non-Condensing |
|
Physical
Characteristics |
Dimensions |
215* 57.05* 166 mm (W* H* D) |
|
Net Weight |
2.20 KG |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
| Intel® Core™ I3-6100 |
Sky Lake |
2 |
4 |
– |
3.70 GHz |
3 MB Intel® Smart Cache |
51W |
DDR4 |
Intel® HD Graphics 530 |
| Intel® Core™ I3-7100 |
Kaby Lake |
2 |
4 |
– |
3.90 GHz |
3 MB Intel® Smart Cache |
51W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I3-8100 |
Coffee Lake |
4 |
4 |
– |
3.60 GHz |
6 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I3-9100 |
Coffee Lake |
4 |
4 |
4.20 GHz |
3.60 GHz |
6 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I5-6500 |
Sky Lake |
4 |
4 |
3.60 GHz |
3.20 GHz |
6 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 530 |
| Intel® Core™ I5-7500 |
Kaby Lake |
4 |
4 |
3.80 GHz |
3.40 GHz |
6 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 530 |
| Intel® Core™ I5-8400 |
Coffee Lake |
6 |
6 |
4.00 GHz |
2.80 GHz |
9 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I5-9500 |
Coffee Lake |
6 |
6 |
4.40 GHz |
3.00 GHz |
9 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I7-6700 |
Sky Lake |
4 |
8 |
4.00 GHz |
3.40 GHz |
8 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 530 |
| Intel® Core™ I7-7700 |
Kaby Lake |
4 |
8 |
4.20 GHz |
3.60 GHz |
8 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I7-8700 |
Coffee Lake |
6 |
12 |
4.60 GHz |
3.20 GHz |
12 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I7-9700 |
Coffee Lake |
8 |
8 |
4.70 GHz |
3.00 GHz |
12 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® HD Graphics 630 |
Phụ kiện mua thêm
|
Optional Items |
Max Qty |
Description |
|
4G Module |
1 |
Connected by Mini-PCIe interface |
|
USB 16 bit GPIO |
1 |
Connected by USB interface |
|
WiFi Module without AP mode |
1 |
Connected by Mini-PCIe interface |
|
EtherCAT |
1 |
EtherCAT Master, supporting a maximum of 16 slaves (servos + I/O) at a 1ms cycle |
