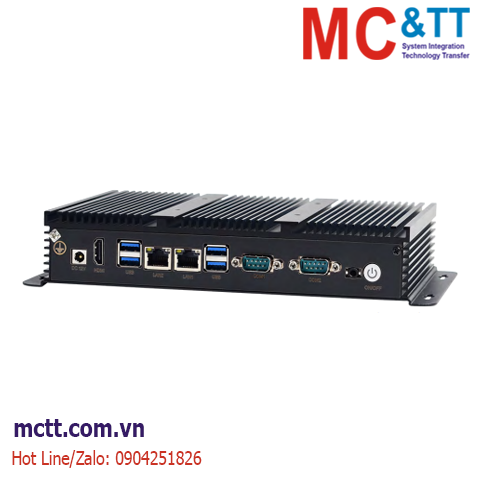

Máy tính công nghiệp không quạt Intel Core™ I5-3317U (2 Lan + 2 COM) TP-IPC IBOX-104V2-2L6C-XP
The IBOX-104V2-2L6C-XP is a compact Multi COM Industrial PC built for legacy industrial systems requiring stable serial communication and long-term reliability.
Equipped with up to six COM ports and dual Gigabit LAN, this Multi COM Industrial PC enables direct connection to PLCs, sensors, controllers, and other serial-based industrial equipment without external converters. Support for Windows XP, Windows 7, Windows 10, Linux, and Windows IoT makes it especially suitable for long-life industrial projects and system upgrades.
Housed in an ultra-slim fanless aluminum enclosure, the IBOX-104V2-2L6C-XP Multi COM Industrial PC delivers stable thermal performance, resistance to dust and vibration, and reliable 24/7 operation in factory automation, HMI systems, and industrial edge control applications
Tính năng
- Multi COM Industrial PC designed for legacy automation and control systems
- Up to 6 serial COM ports supporting RS232 / RS485 communication
- Dual Gigabit LAN ports for industrial networking and device integration
- Ultra-slim fanless aluminum enclosure for silent and maintenance-free operation
- Supports Windows XP, Windows 7 / 10, Linux, and Windows IoT
- Flexible storage with mSATA and SATA support for SSD or HDD
- Dual Mini-PCIe expansion for Wi-Fi, Bluetooth, or 4G LTE modules
- Designed for stable 24/7 industrial operation in harsh environments
Thông số kỹ thuật
|
Model |
IBOX-104V2-2L6C-XP |
|
Supported OS |
Win XP, Win 7, Win 10, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT |
|
CPU |
Intel® Core™ I5-3317U, Dual cores, 4 Threads, Base Fre. 1.70GHz, Turbo Fre. 2.60 GHz, TDP 17W |
|
RAM |
SO-DIMM |
1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB |
|
Storage |
mSATA |
1* mSATA3.0 slot on board (6Gb/s) |
|
SATA |
1* SATA2.0 7P Connector (3Gb/s, with 1 * SATA Power Wafer) |
|
I/O
Interface |
COM |
2* RS232/485 (COM1/2, DB9 connector); 2* RS232/485 (COM3/4, Internal header); 2* RS232 (COM5/6, Internal header) |
|
Ethernet |
2* GbE LAN, Realtek RTL8111H, support Wake on Network/PXE |
|
USB |
4 * USB3.0 (TYPE-A, Rear IO); 5 * USB2.0 (Wafer, Internal header) |
|
Video |
1* HDMI, max resolution up to 1920×1200@60Hz |
|
Audio |
1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header |
|
SIM |
1* Built-in SIM card slot connected to Full size Mini PCIe slot |
|
Power Supply |
12V DC; 1* DC Jack (5.5* 2.5mm);
Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm) |
|
Other |
1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;
1* Remote Switch wafer; 1* Reset wafer; 1* PWR LED; 1* HDD LED; 1 * CMOS Clear button; 1* TPM2.0 Jumper |
|
Extended
Capabilities |
Additional
Internal Interface |
1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0, support Wi-Fi+BT/ 4G)
1* Half Size Mini-PCIe (PCIe+USB2.0, support Wi-Fi+BT) |
|
Environment |
Operating Temp. |
-10 ~ 50 °C w/ 0.7m/s Airflow |
|
Storage Temp. |
-40 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical
Characteristics |
Dimensions |
250* 44* 153 mm (W* H* D) (It has a higher version with 49mm solution) |
|
Net Weight |
1.5 KG |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Core™ I5-3317U |
Ivy Bridge |
2 |
4 |
2.60 GHz |
1.70 GHz |
3 MB Intel® Smart Cache |
17W |
DDR3 |
Intel® UHD Graphics 4000 |
Phụ kiện mua thêm
|
Optional Items |
Max Qty |
Description |
|
Isolated RS-232 |
6 |
DB9 or Phoenix Terminal connector, connected by header |
|
Isolated 8-bit GPIO, 9-24V |
1 |
Phoenix Terminal connector, connected by header |
|
4G Module |
1 |
Connected by Mini PCIe interface |
|
WiFi Module without AP mode |
1 |
Connected by Mini PCIe interface |
|
Dual channel CAN-Bus Module |
1 |
Connected by Mini PCIe interface |
Tài liệu kỹ thuật
Datasheet
