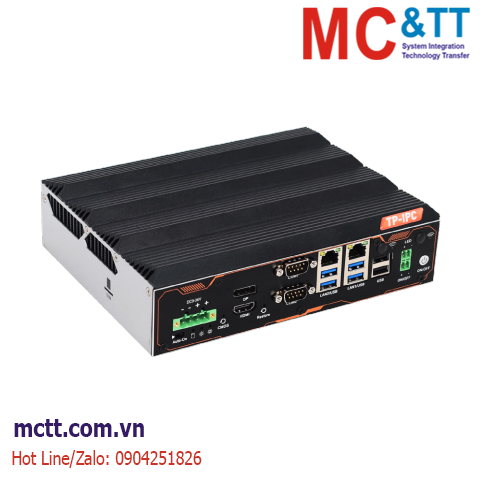

Máy tính công nghiệp không quạt Intel Core™ i7/ i5 /i3 Gen 8-9th (2 Lan + 2 COM) TP-IPC AEOLUS-TL9-2L2C
AEOLUS-TL9-2L2C is a Z390 machine vision industrial PC designed for control automation, intelligent vision, HMI systems, and demanding industrial workloads.
Powered by 8th–9th Gen Intel® Core™ processors and engineered with industrial-grade reliability, it delivers powerful computing, stable communication, and strong data processing capability for modern industrial environments.
With its Z390 platform, dual Intel Gigabit LAN, isolated serial interfaces, dual M.2 high-speed storage, advanced cooling design, wide-range power support, and flexible installation options, it is well-suited for industrial automation control, machine vision platforms, intelligent manufacturing equipment, transportation systems, energy management, and edge computing deployments.
Tính năng
- Supports 8th–9th Gen Intel® Core™ i7 / i5 / i3 processors with Intel® Z390 chipset—this Z390 machine vision industrial PC delivers stable desktop-class performance up to 65W TDP.
- Dual Intel® Gigabit Ethernet ports supporting Wake-on-LAN and PXE
- 2 × isolated RS232 / RS485 serial ports with capacitive isolation and TVS surge protection
- Dual M.2 high-speed storage architecture, supporting PCIe Gen3 NVMe and SATA SSDs
- Supports HDMI and DisplayPort 4K output
- Industrial thermal architecture with open grille design, cooling fans, and copper heat pipes, ensuring stable performance under continuous heavy workloads.
- Wireless-ready design supporting 5G and Wi-Fi modules via M.2 and Mini-PCIe
- Wide-range 19–36V DC power input
- Flexible mounting options including wall-mount, vertical mount, and DIN-rail
Thông số kỹ thuật
|
Model |
AEOLUS-TL9-2L2C |
|
Supported OS |
Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS, ect.), Win 10 IoT |
|
Chipset |
Model |
Intel® Z390 Chipset, TDP 6W |
|
vPRO Tech |
Non-supported |
|
CPU |
Socket |
Intel® Desktop Processors Socket LGA1151 |
|
Series |
8th-9th Gen. Intel® Core™ i7/ i5 /i3 Processor |
|
TDP |
Up to 65W |
|
Graphic |
Intel® UHD Graphics 630 for 8-9th Gen. processor, 32Eus |
|
BIOS |
AMI UEFI BIOS |
|
RAM |
SO-DIMM |
1* SO-DIMM DDR4 2400~2666 MHz Socket, Capacity up to 32GB |
|
Storage |
M.2 |
1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD;
1* M.2 (NGFF) 2280 M-key slot, SATA 6Gbps/PCIe 3.0 x4 Adaptive SSD; |
|
I/O Interface |
COM |
2* RS232/RS485, switchable via side switch, supporting digital capacitive isolation, ESD/EFT/Surge protection; Please note that COM3 is exclusively used for communication with the I/O board light source module |
|
Ethernet |
2* Intel i210-AT GbE LAN, Supports wake-on-LAN, PXE |
|
USB |
4* USB 3.0;
2* USB 2.0;
1* USB 2.0 internal header |
|
Video |
1* HDMI (support Resolution: 3840×2160 @30Hz/ 1920×1080@60Hz);
1*DP, support 3840×2160@60Hz; |
|
Audio |
5.1-Channel HD Audio Codec – Realtek ALC897, 1*Audio Output (SPK) + 1*Microphone Input (Mic-In) |
|
SIM |
1* Nano SIM connected to M.2 Key-B 3042/3052, support 5G wireless |
|
Power Supply |
DC 19V-36V; 4-PIN green connector, 5.08mm |
|
Featured Interface |
1* External Clearable CMOS;
1* Restore Button;
1* Power-on Startup DIP Switch
1* Single-Chip Watchdog & 255-Level Interval Timer; |
|
Extended
Capabilities |
Additional
Internal Interface |
1* M.2 2230 E-key slot, PCIE x1 Gen3 + USB 2.0, support WI-FI + BT;
1* Full-Size Mini-PCIe, PCIE x1 Gen3 + USB 2.0, optional CAN/ LAN/ COM/ Wi-Fi expansion etc. |
|
Environment |
Operating Temp. |
-10 ~ 60 °C w/ 0.7m/s Airflow |
|
Storage Temp. |
-40 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @95%, Non-Condensing |
|
Physical
Characteristics |
Dimensions |
215* 57.13* 166.8 mm (W* H* D) |
|
Net Weight |
2.25 KG |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Core™ I3-8100 |
Coffee Lake |
4 |
4 |
– |
3.60 GHz |
6 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® UHD Graphics 630 |
|
Intel® Core™ I3-9100 |
Coffee Lake |
4 |
4 |
4.20 GHz |
3.60 GHz |
6 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® UHD Graphics 630 |
|
Intel® Core™ I5-8400 |
Coffee Lake |
6 |
6 |
4.00 GHz |
2.80 GHz |
9 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® UHD Graphics 630 |
|
Intel® Core™ I5-9500 |
Coffee Lake |
6 |
6 |
4.40 GHz |
3.00 GHz |
9 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® UHD Graphics 630 |
|
Intel® Core™ I7-8700 |
Coffee Lake |
6 |
12 |
4.60 GHz |
3.20 GHz |
12 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® UHD Graphics 630 |
|
Intel® Core™ I7-9700 |
Coffee Lake |
6 |
8 |
4.70 GHz |
3.00 GHz |
12 MB Intel® Smart Cache |
65W |
DDR4 |
Intel® UHD Graphics 630 |
Phụ kiện mua thêm
|
Optional Items |
Max Qty |
Description |
|
5G Module |
1 |
Connected by M.2 interface |
|
WiFi Module without AP mode |
1 |
Connected by M.2 interface |
Tài liệu kỹ thuật
Datasheet
