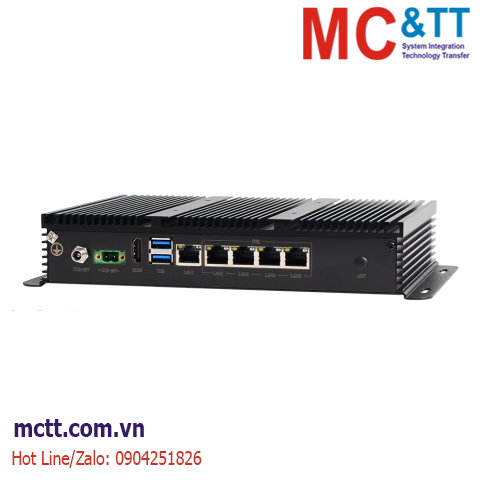

Máy tính công nghiệp không quạt Intel Core™ I5-8260U (5 Lan + 2 COM) TP-IPC IBOX-104V2-5L2C4P
IBOX-104V2-5L2C4P is a multi LAN industrial PC for automation control, designed for industrial networking, device communication and edge control systems requiring high LAN density and stable long-term operation.
With five Gigabit LAN ports and multiple COM interfaces, it is ideal for industrial gateways, automation controllers, machine vision networking front-ends and industrial data acquisition systems where multiple devices must be connected reliably in parallel.
Tính năng
- 5 × Gigabit Ethernet ports for high-density industrial network connections
- Multi LAN industrial PC for automation control and industrial gateways
- Multiple RS232 / RS422 / RS485 serial ports for industrial device communication
- Fanless embedded design for maintenance-free 24/7 operation
- Wide DC power input for industrial control cabinets and field deployment
- Compact aluminum chassis suitable for space-limited automation systems
Thông số kỹ thuật
|
Model |
IBOX-104V2-5L2C4P |
|
Supported OS |
Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT |
|
CPU |
Intel® Core™ I5-8260U, 4* Cores, 8* Threads, Base Fre. 1.6 GHz, Turbo Fre. 3.90GHz, TDP 15W |
|
Graphic |
Intel® UHD Graphics 620, support 4K @60Hz |
|
RAM |
SO-DIMM |
1* Non-ECC SO-DIMM slot, support DDR4-2400/2133MHz, up to 32GB |
|
Storage |
mSATA |
1* mSATA3.0 slot on board (3Gb/s) |
|
SATA |
1* SATA3.0 7P connector (6Gb/s, with 1* SATA Power Wafer) |
|
I/O
Interface |
COM |
2* RS232/422/485, internal headers, switch by jumper |
|
Ethernet |
5* 1.0 GbE LAN, Intel i210, LAN2-LAN5 support PoE IEEE802.3af up to 15W per LAN port |
|
USB |
2* USB3.0 connectors, 4* USB2.0 headers |
|
Video |
1* HDMI, 4096×2304@24Hz |
|
Audio |
1 * Line-Out header; with 7.1 channel HD Audio Codec Realtek ALC897; 1 * amplifier header |
|
SIM |
1* Built-in SIM card slot connected to Mini-PCIe |
|
Power Supply |
9-36V DC, 1* Power Input Terminal Block, (2-Pin, 5.08mm); 1* Threaded Jack (5.5* 2.5mm) |
|
Other |
1* 8-bit GPIO header; 1* Remote Switch Terminal (2-Pin, 3.81mm), 1* Internal header with function Reset/ PWR LED/ HDD LED |
|
Extended
Capabilities |
Additional
Internal Interface |
1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0) |
|
Environment |
Operating Temp. |
-10 ~ 50 °C w/ 0.7m/s Airflow |
|
Storage Temp. |
-40 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical
Characteristics |
Dimensions |
250* 44* 153 mm (W* H* D) (It has a higher version with 49mm solution) |
|
Net Weight |
1.5 KG |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Core™ I5-8260U |
Coffee Lake |
4 |
8 |
3.90 GHz |
1.60 GHz |
6 MB Intel® Smart Cache |
15W |
DDR4 |
Intel® UHD Graphics 620 |
Phụ kiện mua thêm
|
Optional Items |
Max Qty |
Description |
|
Isolated RS-232 |
2 |
DB9 or Phoenix Terminal connector, connected by header |
|
Isolated 8-bit GPIO, 9-24V |
1 |
Phoenix Terminal connector, connected by header |
|
4G Module |
1 |
Connected by Mini PCIe interface |
|
WiFi Module without AP mode |
1 |
Connected by Mini PCIe interface |
|
Dual channel CAN-Bus Module |
1 |
Connected by Mini PCIe interface |
Tài liệu kỹ thuật
Datasheet
