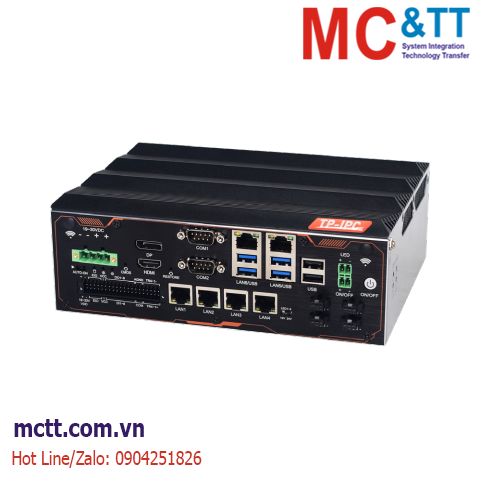

Máy tính công nghiệp không quạt Intel Core™ i7/ i5 /i3 Gen 8-9th (6 Lan + 2 COM) TP-IPC AEOLUS-TL9-6L2C4P

Model

AEOLUS-TL9-6L2C4P

Supported OS

Win10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS,ect.), Win 10 IoT

Chipset

Model

Intel® Z390 Chipset, TDP 6W

vPRO Tech

Non-supported

CPU

Socket

Intel® Desktop Processors Socket LGA1151

Series

8th-9th Gen. Intel® Core™ i7/ i5 /i3 Processor

TDP

Up to 65W

Graphic

Intel® UHD Graphics 630 for 8-9th Gen. processor, 32Eus

BIOS

AMI UEFI BIOS; External Clearable CMOS

RAM

SO-DIMM

1* SO-DIMM DDR4 2400~2666 MHz Socket, Capacity up to 32GB

Storage

M.2

1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD;

1* M.2 (NGFF) 2280 M-key slot, SATA 6Gbps/PCIe 3.0 x4 Adaptive SSD;

I/O Interface

COM

2* RS232/RS485, switchable via side switch, supporting digital capacitive isolation, ESD/EFT/Surge protection; Please note that COM3 is exclusively used for communication with the I/O board light source module

Ethernet

6* Intel i210-AT GbE LAN, including 4 PoE support IEEE 802.3af (Single output up to 15W), all supports wake-on-LAN, PXE

USB

4* USB 3.0;

2* USB 2.0;

1* USB 2.0 internal header

Video

1* HDMI (support Resolution: 3840×2160 @30Hz/ 1920×1080@60Hz);

1* DP, support 3840×2160@60Hz;

Audio

5.1-Channel HD Audio Codec – Realtek ALC897, 1*Audio Output (SPK) + 1*Microphone Input (Mic-In)

SIM

1* External Nano SIM connected to M.2 Key-B 3042/3052, support 5G wireless

Power Supply

DC 19V-30V; 4-PIN green connector, 5.08mm

Featured Interfaces

16 bits GPIO (8 bits Input/ 8 bits Output, 5-24V), 10* 2 PIN, 2.54mm, Green connector, expanded by I/O board;

4-Channel Light Source Output (supports 12V/24V switching, no hot-swapping support, single channel max 1.5A, 5A full load at 12V / 3A full load at 24V);

4-Channel Light Source External Trigger Signal (integrated in 4*2Pin, 2.54mm Phoenix Connector, trigger level 3V/5V);

1* Single-Chip Watchdog & 255-Level Interval Timer;

Extended

Capabilities

Additional

Internal Interface

1* M.2 2230 E-key slot, PCIE x1 Gen3 + USB 2.0, support WI-FI + BT;

1* M.2 3042/3052 B-key slot, support 5G wireless;

1* Full-Size Mini-PCIe, PCIE x1 Gen3 + USB 2.0, optional CAN/ LAN/ COM/ Wi-Fi expansion etc.

Environment

Operating Temp.

-10 ~ 60°C w/ 0.7m/s Airflow

Storage Temp.

-40 ~ 85°C (-40~185 °F)

Relative Humidity

40°C @95%, Non-Condensing

Physical

Characteristics

Dimensions

215* 78.13* 166.8 mm  (W* H* D)

Net Weight

2.5 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Core™ I3-8100

Coffee Lake

4

4

–

3.60 GHz

6 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I3-9100

Coffee Lake

4

4

4.20 GHz

3.60 GHz

6 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-8400

Coffee Lake

6

6

4.00 GHz

2.80 GHz

9 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-9500

Coffee Lake

6

6

4.40 GHz

3.00 GHz

9 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-8700

Coffee Lake

6

12

4.60 GHz

3.20 GHz

12 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-9700

Coffee Lake

6

8

4.70 GHz

3.00 GHz

12 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Optional Items

Max Qty

Description

4G Module

1

Connected by Mini-PCIE interface

5G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by M.2 interface
