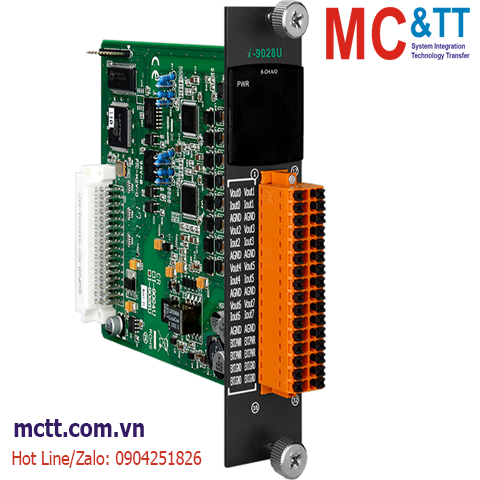

Module 8 kênh AO ICP DAS I-9028U CR
Feature
• 8-channel Voltage or Current Output
• Individual Channel Configuration
• Short Circuit Protection
• Power-on Value
• Safe Value
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-9028U is source type analog output modules, offering 8 single-ended analog output channels. Each channel can be programmed to an individual output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA. Open wire detection is provided for +4 ~ +20 mA output. Options for configuring power-on and safe values are included, together with qualification for 4 kV ESD protection as well as 3000 VDC intramodule isolation.
Application
Specifications
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Output |
| Channels |
8 |
| Range |
Voltage: 0 ~ +5 VDC、±5 VDC、0 ~ +10 VDC、±10 VDC
Current: 0 ~ +20 mA、+4 ~ +20 mA |
| Resolution |
16-bit |
| Accuracy |
±0.02% of FSR |
| Zero Drift |
±0.2 μV/°C |
| Span Drift |
±25 ppm/°C |
| Short Circuit Protection |
Yes |
| Response Time |
105 us per channel |
| Programmable Output Slope |
Voltage: 0.5 V/us
Current: 0.024 mA/us |
| Current Output Wiring |
Source |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Isolation |
3000 VDC |
| Consumption |
2 W Max. |
| Powered from Terminal Block |
Yes, 15 ~ 30 VDC |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9028U CR |
8-ch Isolated Analog Output Module (RoHS) |
