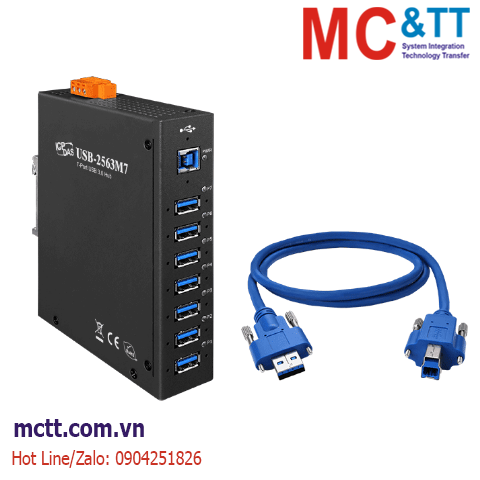

Hub công nghiệp 7 cổng USB 3.0 ICP DAS USB-2563M7 CR
Feature
• USB 3.0 Gen1 speeds up to 5 Gbps
• Expand one USB port to 7 USB ports
• 7 downstream USB 3.0 ports (Type A); 1 upstream USB 3.0 port (Type B)
• Each downstream port supports up to 900mA with over-current protection
• 4 kV contact ESD protection and 1kV surge protection
• 10-30VDC Power inputs with polarity reverse protection
• Metal case with chassis ground
• DIN-rail mounting or wall mounting (optional)
Introduction
The USB-2563M7 allows you to add multiple high performance USB 3.0 peripheral devices to your computer. It supports the USB 3.0 high-speed mode that can achieve 5 Gbps data transmitting rate.
The USB-2563M7 only supports self-powered mode (drawing power from an external power supply). Externally powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.
Application
Specifications
| LED Indicators |
| Status |
1 x Power
7 x Downstream Ports |
| USB |
| Ports |
7 |
| Specification |
Universal serial bus Specification Rev.3.0/2.0/1.1/1.0 |
| Transfer Speed |
5 Gbit/s-Super speed mode |
| Supply Current |
900mA per port with over-current protection |
| Connector |
Upstream x 1 (Type B)
Downstream x 7 (Type A) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.5 A @ 24 VDC for 450 mA per port.
1 A @ 24 VDC for 900 mA per port. |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
31 x 119 x 150 (W x L x H) |
| Installation |
DIN-Rail mounting or wall mounting (optional) |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| USB-2563M7 CR |
7-Port 7-Port Industrial USB 3.0 Hub with Metal Case (RoHS)
Includes CA-USB-AB1-L010 Cable (USB 3.0 Type-B to USB 3.0 Type-A Cable, 1M) |
