HUB công nghiệp 4 cổng USB 2.0 ICP DAS USB-2562M CR
Feature
• Compliant with USB Specification Revision 2.0
• Provides 4 Downstream Ports
• Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
• Only Supports Self-powered Mode +12 ~ +48 VDC Power Input
• Supports Downstream Port Status with LED
Introduction
The USB-2562M allows you to add multiple high performance USB 2.0 peripheral devices to your computer (Or XP-8000 series). It supports the USB 2.0 high-speed mode that can achieve 480 Mbps data transmitting rate. The USB-2562M only supports self-powered mode (drawing power from an external power supply). Externally powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.
Application
Specifications
| LED Indicators |
| Status |
1 x Power
4 x Downstream Ports |
| USB |
| Ports |
4 |
| Specification |
USB 1.1 and USB 2.0 standard compatible |
| Transfer Speed |
480 Mbit/s-high speed mode
12 Mbit/s- full speed mode
1.5 Mbit/s-low speed mode |
| Supply Current |
500 mA Max. per port |
| Connector |
1 x Upstream (Type B)
4 x Downstream (Type A) |
| Power |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
0.25 A @ 24 VDC for 250mA per port.
0.5 A @ 24 VDC for 500mA per port. |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
32 x 108 x 86 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-20 ~ +80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information

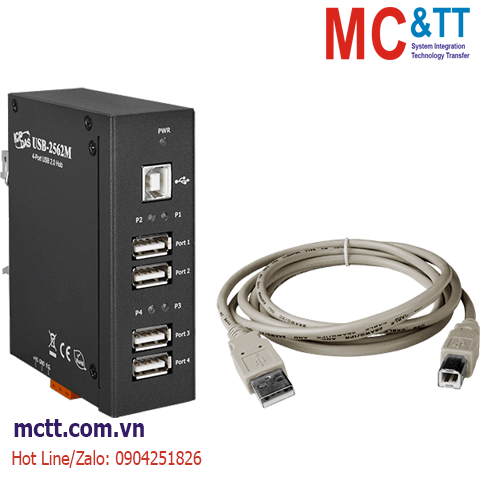

| USB-2562M CR |
4-Port Industrial USB 2.0 Hub with Metal Case (RoHS)
Includes CA-USB18 Cable (USB 2.0 A-Male to B-Male Cable, 1.8 M) |
