HUB công nghiệp 4 cổng USB 2.0 ICP DAS USB-2560/S CR
Feature
• Compliant with USB Specification Revision 2.0
• Provides 4 Downstream Ports
• Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
• Only Supports Self-powered Mode +10 ~ +30 VDC Power Input
• Supports Downstream Port Status with LED
Introduction
The USB-2560 allows you to add multiple high performance USB 2.0 peripheral devices to your computer (Or XP-8000 series). It supports the USB 2.0 high-speed mode that can achieve 480 Mbps data transmitting rate. The USB-2560 only supports self-powered mode (drawing power from an external power supply). Externally powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.
USB-2560/S has 6 W Power Supply that can support 250 mA for each port to mouse, keyboard, Pan driver ... or the other USB devices.
Application
• Audio Speaker
• Voice System
• Audio Monitor
• External Sound Card
Specifications
| LED Indicators |
| Status |
1 x Power
4 x Downstream Ports |
| USB |
| Ports |
4 |
| Specification |
USB 1.1 and USB 2.0 standard compatible |
| Transfer Speed |
480 Mbit/s-high speed mode
12 Mbit/s- full speed mode
1.5 Mbit/s-low speed mode |
| Supply Current |
500 mA Max. per port |
| Connector |
1 x Upstream (Type B)
4 x Downstream (Type A) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.25 A @ 24 VDC for 250mA per port.
0.5 A @ 24 VDC for 500mA per port. |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 107 x 78 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
0 ~ +75 °C |
| Storage Temperature |
-20 ~ +80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information

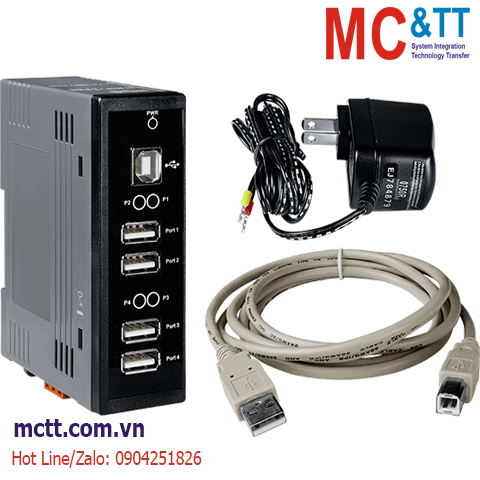

| USB-2560/S CR |
4-port Industrial USB 2.0 Hub (RoHS)
Includes CA-USB18 Cable and GPSU06U-6 Power Supply (6 W) |
