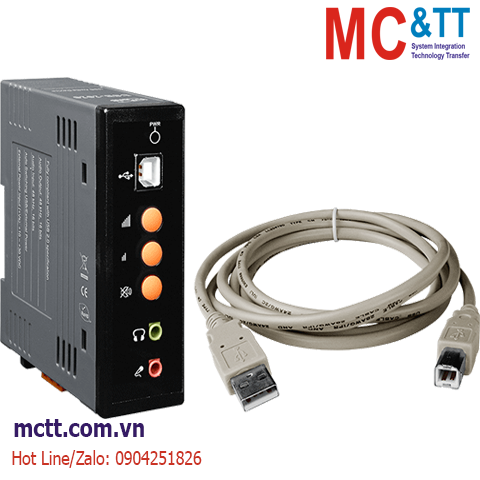

Bộ chuyển đổi USB sang Audio ICP DAS USB-2020 CR
Feature
• USB 1.1, 12MHz full speed, fully compliant with USB 2.0 specification
• 16-Bit Delta-Sigma ADC and DAC
• Driving Headphone and Passive Speaker Directly
• Volume and Mute Control
• Auto switching USB/external power
Introduction
The USB-2020 is a USB interface audio device, supports 32, 44.1 and 48 kHz, 8 or 16 bits stereo audio output, and 8, 10.025, 16, 22.05, 32, 44.1, and 48 kHz, 8 or 16 bits stereo microphone input. The USB-2020 supports Plug-and Play in Windows 2000/XP/Vista/7/8/10 and Linux OS. XPAC-8000 already has a built-in USB-2020 driver.
Application
• Audio Speaker
• Voice System
• Audio Monitor
• External Sound Card
Specifications
| LED Indicators |
| Status |
1 x Power and Communication |
| Audio |
| Channels |
Input: Mono, Stereo (L + R)
Output: Mono, Stereo (L + R) |
| Resolution |
8 bits, 16 bits |
| Sampling Frequency |
Input: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHz
Output: 32, 44.1, 48 kHz |
| THD+N |
Input: <0.1% (0 dB)
Output: < 0.02% (0 dB), < 3% (-60dB) |
| SNR |
Input: > 80 dB
Output: > 87 dB |
| Channel Separation |
Input: > 78 dB
Output: > 85 dB |
| Voltage |
Input: 1.4 Vrms
Output: 3 Vrms |
| Input Impedance |
10 k Ohm |
| Condenser Microphone Bias |
Yes |
| Output Current |
30 mA Max. |
| Stereo Jack |
3.5 mm stereo jack line-out and 3.5 mm stereo jack mic-in |
| USB |
| Ports |
1 |
| Specification |
USB 1.1, 12MHz full-speed, fully compliant with USB 2.0 specification |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1 W (standby)/1.8 W (Max.) |
| Auto Switching USB/External Power |
Yes |
| Powered from Terminal Block |
Yes |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 107 x 78 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| USB-2020 CR |
USB Audio Device (RoHS)
Includes CA-USB18 Cable (USB 2.0 A-Male to B-Male Cable, 1.8 M) |
