Module 2 cổng HART chuyển đổi Modbus RTU/ASCII slave sang HART master ICP DAS I-9720 CR

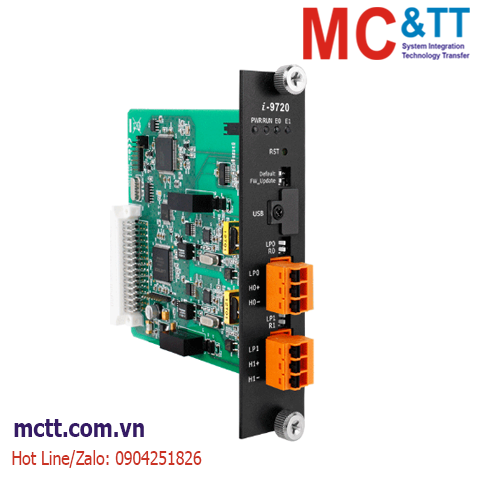

I-9720 is a Modbus RTU/ASCII slave to HART master gateway with two HART ports. It can be used in Windows / WinCE / Linux 9K series PAC for Modbus master to get HART device data easily. It provides adjustable HART loop power (27VDC) and loop resistor (250 ohm, 2W) to simplify HART network wiring. Free HG_Tool is used for module configuration and HART device data monitor quickly.
Feature
- Support two HART channels
- Support HART Short/Long frame
- Support Modbus RTU and ASCII format
- Support HART network Loop Power
- Built-In HART network resistor 250 ohm (2W)
- Provide LED indicators
- Support Windows / WinCE / Linux 9K series PAC
- Free HG_Tool for module configuration
- Support module configuration via USB
- Support RST button for module reboot
Application
Specifications
| Software |
| Driver |
Windows XP / 7 / 8 / 10 / 11 (32/64 bit) |
| LED Indicators |
| Status |
PWR / RUN / E0 / E1 |
| COM Ports |
| Ports |
Backplane (Virtual COM) |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N/O/E(parity), 8(data bit), 1/2(stop bit) |
| Protocol |
Modbus RTU / Modbus ASCII |
| USB |
| Specification |
USB 1.1 and 2.0 standard |
| Connector |
USB Type C |
| Virtual COM Parameter |
1200 ~ 115200 bps, N/O/E(parity), 8(data bit), 1/2(stop bit) |
| HART |
| Ports |
2 |
| Device |
2-wired or 4-wired HART devices |
| Topology |
Point to Point or Multi-Drop |
| Data |
Only Digital Data |
| Frame Type |
Short and Long Frame |
| Burst Mode |
Supported |
| Max. HART Device |
15 |
| Loop Resistor |
250 Ω resistor by Dip-Switch |
| Isolation |
UL1577 Spec. |
| Protocol |
HART |
| Loop Power |
Yes (module provides +27VDC) |
| Power |
| Reverse Polarity Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range |
Unregulated +10 ~ +30 VDC |
| Consumption |
Max. 2.3 W (Point to Point HART wiring)
Max. 4.5 W (Multi-drop HART wiring) |
| Mechanical |
| Dimensions (mm) |
31mm x 134mm x 143mm (W x L x H) |
| Installation |
Slot |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10% ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9720 CR |
Modbus RTU/ASCII slave to HART master gateway with 2 HART ports (RoHS) |
