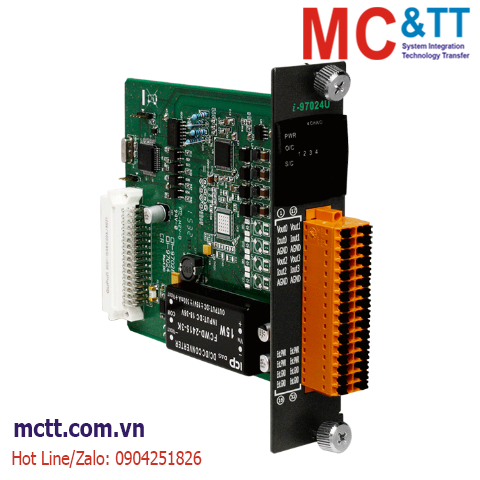

Module 4 kênh AO ICP DAS I-97024U CR
Feature
• 4-channel Voltage or Current Output
• Individual Channel Configuration
• Open Wire Detection for Current Output
• RF Immunity
• Short Circuit Protection
• Power-on Value
• Safe Value
Introduction
The I-97024U is source type analog output modules, which offer 4 single-ended analog output channels. Every channel can be programmed to an individual output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA. Open wire detection is provided for +4 ~ +20 mA output. Options for configuring power-on and safe values are also included. The I-97024U provide RF immunity level matching that defined by IEC 61000-4-3 standard, together with 4 kV ESD protection as well as 3000 VDC intra-module isolation
Application
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| RS Immunity (IEC 61000-4-3) |
3 V/m, 80 MHz ~ 1 GHz |
| LED Indicators |
| Status |
1 x Power and Communication
8 x Analog Output Fault |
| Analog Output |
| Channels |
4 |
| Range |
0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution |
16-bit |
| Accuracy |
±0.02% of FSR |
| Zero Drift |
±0.2 μV/°C |
| Span Drift |
±25 ppm/°C |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
10 ms per channel |
| Programmable Output Slope |
Voltage: 0.0625 ~ 512 V/Second
Current: 0.125 ~ 1024 mA/Second |
| Current Output Wiring |
Source |
| Open Wire Detection |
Yes, +4 ~ +20 mA |
| Voltage Output Capability |
1000 Ω |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 to 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
4 W Max. |
| Powered from Terminal Block |
Yes, 15 ~ 30 VDC |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-97024U CR |
4-ch Isolated Analog Output Module (RoHS) |
