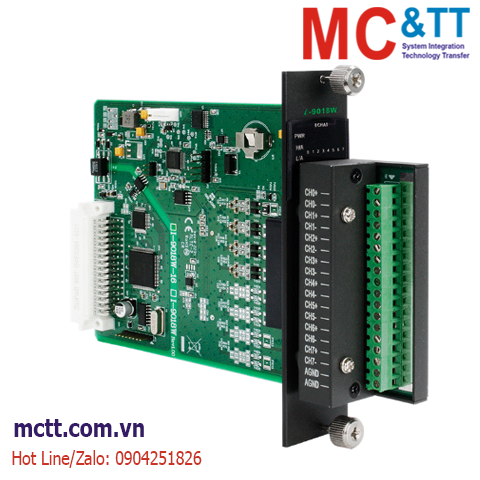

Module 8 kênh AI Thermocouple ICP DAS I-9018/S1 CR
Feature
- 8-channel thermocouple input
- Open wire detection
- Individual channel confi guration
- 100 Hz high-speed sampling rate for each channel
- Modbus RTU protocol
- 921k bps UART communication
- Each module occupies one COM port
- COM port driver available on PACs with Windows 10 IoT,
WES7, WinCE 6.0, WinCE 7.0, Linux
Introduction
The I-9018/S1 is an 8-channel thermocouple input module. Each channel provides 100Hz high-speed sampling rate and supports various thermocouple input types, including J, K, T, E, R, S, B, N, and C. , L, M and LDIN43710. It features automatic cold-junction compensation for each channel and supports open thermocouple detection and 30VDC overvoltage protection.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x System
16 x I/O |
| Analog Input |
| Channels |
8 |
| Type |
Thermocouple |
| Sensor Type |
J、K、T、E、R、S、B、N、C、L、M、LDIN43710 |
| Resolution |
16-bit |
| Accuracy |
±0.1% FSR |
| Sampling Rate |
100 Hz (per channel) |
| Input Impedance |
>400 kΩ |
| Overvoltage Protection |
30 V |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes |
| COM Ports |
| Ports |
1 x RS-232 |
| Baud Rate |
921600 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus RTU |
| Power |
| Consumption |
0.3 W Max. |
| Mechanical |
| Dimensions (mm) |
I-9018W: 31 x 134 x 134, CN-1825M: 35 x 80 x 28 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9018/S1 CR |
8-Channel High Speed Thermocouple Input Module (RoHS)
Includes CN-1825M Daughter Board |
