Module BACnet/IP 4 kênh AI + 2 kênh AO + 4 kênh DI + 4 kênh DO ICP DAS BNET-2310M CR

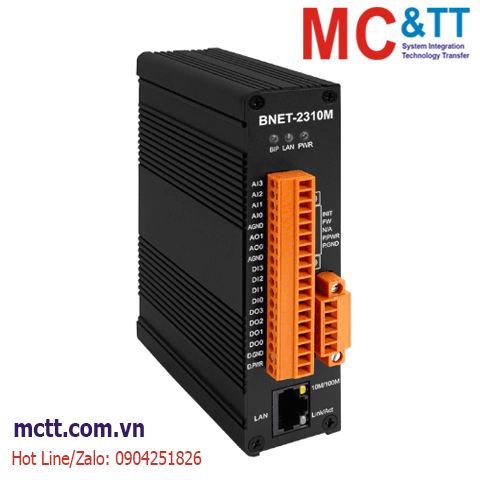

The BNET-2310M is a multifunctional BACnet/IP IO module, featuring 4 AI channels, 2 AO channels, 4 DI channels, and 4 DO channels. The module contains multiple BACnet objects, including Device, AI, AO, BI, and BO, and supports various BIBBS (such as DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B, etc.). The module has a built-in web server, allowing users to easily and securely configure the module remotely via a web interface.
Features
- Read/Write 4AI, 2AO, 4BI, 4BO via BACnet/IP
- Act as BACnet/IP Server
- Support Web-based configuration
- Support to Import/Export configuration file
- High reliability in harsh environments
- DIN-Rail mountable
Introduction
The BNET-5304 is a multi-function BACnet/IP module with 6 AI channels, 1 AO channel, 4 DI channels and 4 DO channels. The module contains number of BACnet objects including Device, AI, AO, BI, and BO with multiple BIBBS (DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B…etc.) supported. The modules also feature a built-in web server which allows remote configuration by using a regular web browser for an easy and safe access at any time anywhere.
Applications
Specifications
| CPU Module |
| Watchdog Timer |
Yes |
| System |
| Security |
ID and Password |
| LED Indicators |
| Status |
Power, Ethernet and BIP status |
| Analog Input |
| Channels |
4 Single-ended |
| Range |
±1 V , ±2.5 V, ±5 V, ±10 V |
| Resolution |
16-bit |
| Accuracy |
±0.1% |
| Sampling Rate |
10Hz(Total channels) |
| Overvoltage Protection |
+120 VDC |
| Individual Channel Configuration |
Yes |
| Analog Output |
| Channels |
2 |
| Range |
0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V |
| Resolution |
12-bit |
| Accuracy |
±0.1% |
| Individual Channel Configuration |
Yes |
| Digital Input |
| Channels |
4 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source(PNP) |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Overvoltage Protection |
+60 VDC |
| Digital Output |
| Channels |
4 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Source(PNP) |
| Load Voltage |
+10 VDC ~ +40 VDC |
| Load Current |
650 mA/channel |
| Overvoltage Protection |
47 VDC |
| Overload Protection |
Yes |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| BACnet/IP |
| Protocol |
BACnet/IP Server |
| Objects |
1 Device, 4 AI, 2 AO, 4 BI, 4 BO |
| BIBBs |
DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
| Power |
| Input Range |
+10VDC to +30VDC |
| Consumption |
3.6W (0.15A @24VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 120 x 106 (W x L x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| BNET-2310M CR |
Multifunction BACnet/IP I/O module with 4-ch AI, 2-ch AO, 4-ch DI, and 4-ch DO (RoHS) |
