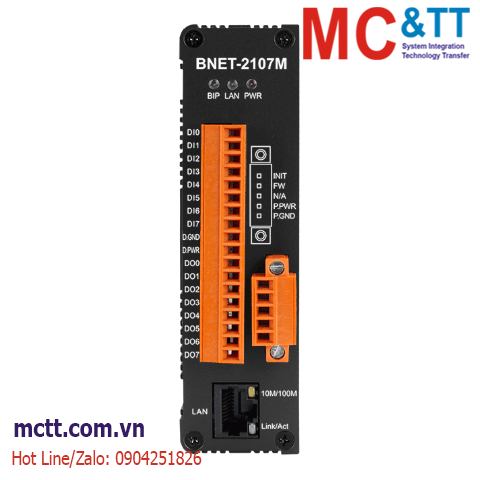

Module BACnet/IP 8 kênh DI + 8 kênh DO ICP DAS BNET-2107M CR
Features
- Read/Write 8 BO, 8 BI and 8 PIV via BACnet/IP
- Act as BACnet/IP Server
- Support Web-based configuration
- High reliability in harsh environments
- DIN-Rail mountable
Introduction
The BNET-2107M is a BACnet/IP IO module, featuring 8 digital input and 8 digital output channels. The module contains multiple BACnet objects, including Device, BO, BI, PIV, and supports various BIBBS (such as DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B, etc.). The module has a built-in web server, allowing users to easily and securely configure the module remotely via a web interface.
Applications
Specifications
| CPU Module |
| Watchdog Timer |
Yes |
| System |
| Security |
ID and Password |
| LED Indicators |
| Status |
Power, Ethernet and BIP status |
| Digital Input |
| Channels |
8 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Source(PNP) |
| ON Voltage Level |
+3.5 ~ +50VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Overvoltage Protection |
+70 VDC |
| Digital Output |
| Channels |
8 |
| Sink/Source (NPN/PNP) |
Sink(NPN) |
| Load Voltage |
+3.5 VDC ~ 50 VDC |
| Load Current |
700 mA/channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
Yes |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| BACnet/IP |
| Protocol |
BACnet/IP Server |
| Objects |
1 Device, 8 BI, 8 BO, 8 PIV |
| BIBBs |
DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
| Power |
| Input Range |
+10VDC to +30VDC |
| Consumption |
2.4W (0.1A @ 24VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 120 x 106 (W x L x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| BNET-2107M CR |
BACnet/IP I/O module with 8-ch DI and 8-ch DO (RoHS) |
