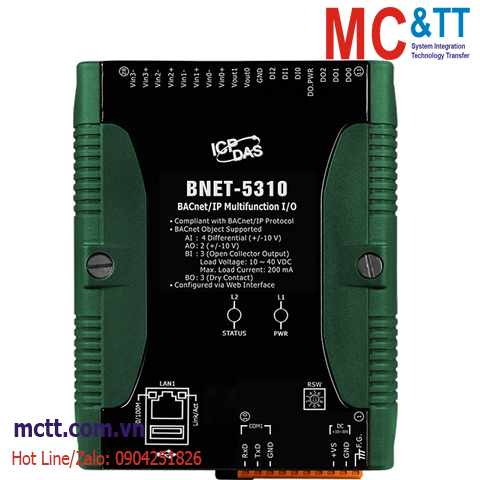

Module BACnet/IP 4 AI + 2 AO + 3 DI + 3 DO ICP DAS BNET-5310 CR
BNET-5310 CR dừng và thay thế bằng GW-2492M CR + M-7000 IO modules or GW-2493M CR + ET-7000 IO modules
Features
- Read/Write 4x AI, 2x AO, 3x BI, 3x BO via BACnet
- Fully Compliant with BACnet/IP Server
- Web-based administration
- Provide Configuration file Import/Export
- Provide update firmware via Web Utility
Introduction
The BNET-5310 is a multi-function BACnet/IP module with 4 AI channels, 2 AO channel, 3 DI channels and 3 DO channels. The module contains number of BACnet objects including Device, AI, AO, BI, and BO with multiple BIBBS (DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B…etc.) supported. The modules also feature a built-in web server which allows remote configuration by using a regular web browser for an easy and safe access at any time anywhere.

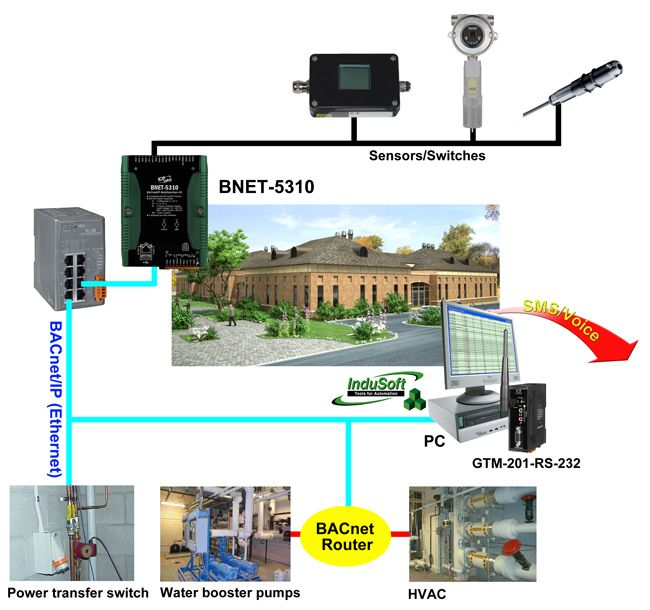

Applications
Specifications
| CPU Module |
| Watchdog Timer |
Yes |
| System |
| Security |
ID and Password |
| LED Indicators |
| Status |
Power and Status |
| Analog Input |
| Channels |
4 |
| Range |
+/- 10 V |
| Resolution |
12-bit |
| Sampling Rate |
4 KHz |
| Input Impedance |
1 M Ohm |
| Overvoltage Protection |
+/- 30 VDC |
| Isolation |
Non-isolated |
| Analog Output |
| Channels |
2 |
| Range |
+/- 10V |
| Resolution |
12-bit |
| Isolation |
Non-isolated |
| Digital Input |
| Channels |
3 |
| Type |
Dry Contact |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Overvoltage Protection |
30 VDC |
| Digital Output |
| Channels |
3 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+10 VDC ~ 40 VDC |
| Load Current |
200 mA/channel at 25 °C |
| Overload Protection |
1.4 A |
| Ethernet |
| Ports |
10/100 Base-TX |
| BACnet/IP |
| Objects |
1 Device, 4 AI, 2 AO, 3 BI, 3 BO |
| BIBBs |
DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
| Power |
| Input Range |
+10V to +30+10V to +30VDC |
| Consumption |
4.8W (0.2A @ 24VDC) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
91 x132 x 52 |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5_90% PH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| BNET-5310 CR |
Multi-function BACnet/IP I/O Module with 4 AI, 2 AO, 3 DI, and 3 DO (RoHS) |
