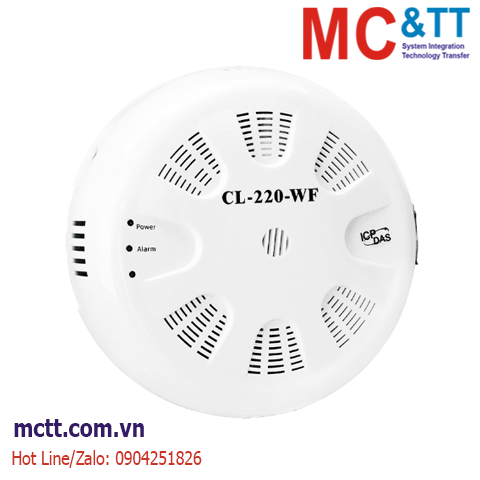

Module Data Logger đo độ bụi PM1/PM2.5/PM10 + nhiệt độ + độ ẩm RS-485/Ethernet/Wi-Fi Modbus RTU/TCP & MQTT ICP DAS CL-220-WF CR

Chia sẻ:
Mã sản phẩm: CL-220-WF CR
Thương hiệu: ICP DAS
Tình trạng:

PM1/PM2.5/PM10/Temperature/Humidity/Dew Point Data Logger Module



    Liên hệ
    Mô tả

    Module Data Logger đo độ bụi PM1/PM2.5/PM10 + nhiệt độ + độ ẩm RS-485/Ethernet/Wi-Fi Modbus RTU/TCP & MQTT ICP DAS CL-220-WF CR

    Feature

    • Able to record PM1/PM2.5/PM10、Temperature、Humidity and Dew Point
    • Up to 450,000 records with date and time stamps
    • Web-based Configuration Interface
    • Simple and Powerful Software Utility, iOS App and Android App Included
    • Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
    • Features RS-485/Ethernet/Wi-Fi Communication Interfaces
    • Relay Output for Alarm or IAQ Device Control
    • Compatible with IEEE802.11b/g/n standards
    • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
    • Support Infrastructure and Limit-AP Modes for Wireless Networks
    • Ceiling Mounting or Wall Mounting

    Introduction

    The CL-200-WF is an IAQ (Indoor Air Quality) monitoring module that includes Wi-Fi, Ethernet and RS-485 interfaces, It provides a WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the modules provide an easy method of incorporating wireless connectivity into monitoring and control systems. The CL-200-WF series of Data Logger devices can be used to record PM2.5, CO, CO2, Temperature, Real-time data can be accessed from the CL-200-WF Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger.

    Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP. For Ethernet interface, it also supports the emerging machineto-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200-WF Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet, PoE and Wi-Fi, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easily maintained in a distributed control system.

    Supports the MQTT Protocol for IoT Applications Features (Ethernet Interface Only)

    The MQTT protocol is designed for the efficient exchange of realtime data between a sensor and a mobile device. It operates via TCP/IP and is in widest use today in "machine-to-machine" (M2M) and "Internet of Things" applications.



    Get Real-time Data Anywhere and Anytime

    Real-time data from the CL-200-WF data logger can be accessed from anywhere and at any time using the iAir Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the data logger.



    Simple and Powerful iAir Utility

    The iAir Utility can be used to configure the modules, monitor real-time data, group CL-200-WF modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

    Real-time data from the CL-200-WF series can be accessed from anywhere and at any time using the WF-IIOT-Utility and iOS App.




    Application

    • Transportation of Food or Pharmaceuticals
    • Food and Beverage Industry (HACCP)
    • Blood Stations and Pharmacies
    • Building and Energy Management
    • Warehouse Management
    • Museums, Archives and Galleries

    Indoor or Underground Parking Lot Automatic Monitoring Solution

    The air quality automation system for indoor or underground parking lot can use the CL-200-WF series modules to monitor the health and safety information, such as CO, CO2, temperature, humidity and dew point, and more...

    Specifications

    System
    Security IP filter (whitelist) and Password (web)
    Alarm PM1/PM2.5/PM10/RH/Temperature
    Real Time Clock Yes
    Data Logger Yes, up to 450,000 records
    Temperature Measurement
    Range -10 ~ +50°C
    Resolution 0.1°C
    Accuracy ±0.6°C
    Life Time 10 years
    Humidity Measurement
    Range 0 ~ 100% RH, Non-condensing
    Resolution 0.1% RH, Non-condensing
    Accuracy ±5% RH, Non-condensing
    Life Time 10 years
    Dew Point
    Range Calculated using temperature and relative humidity
    Resolution 0.1°C
    PM1/PM2.5/PM10 Measurement
    Range 0 to 1,000μg/m3 ( Laser Type)
    Resolution 1μg/m3
    Accuracy ± 10% of FSR.
    Response Time 1 seconds
    Warm-up Time 20 seconds
    Life Time 5 years, Customer has to replace the filter patch.
    Particle
    Sizes 0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm
    Wi-Fi
    Transmission Distance (LoS) 50 meters (LOS)
    Standard Supported IEEE 802.11 b/g/n
    RX Sensitivity -95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM
    Output Power 18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM
    Mode Infrastructure & Limited AP
    Encryption WEP, WPA and WPA2
    Antenna 1 dBi (PCB Antenna)
    Relay Output
    Channels 1 x Form A, SPST
    30 VDC @ 16 A or 250 VAC @ 16 A
    Ethernet
    Ports 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators)
    COM Ports
    Ports 1 x RS-485
    1 x Ethernet
    Protocol DCON and Modbus/RTU (RS-485)
    Modbus TCP(Ethernet, Wi-Fi) and MQTT(Ethernet)
    Power
    Consumption Non-PoE: 2.3 W (Max.)
    PoE: 2.5 W (Max.)
    Powered from Terminal Block +12 ~ +48 VDC
    Mechanical
    Dimensions (mm) Ø 150 x 53 (Ø x H)
    Installation Ceiling Mounting/Wall Mounting
    Ingress Protection Rating IP20
    Environment
    Operating Temperature 0 ~ 50°C
    Storage Temperature -30 ~ +75°C
    Humidity 10 ~ 90% RH, Non-condensing

    Download

    Datasheet

    Documents

    Ordering Information

    CL-220-WF     CR  PM1/PM2.5/PM10/Temperature/Humidity/ Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS)
