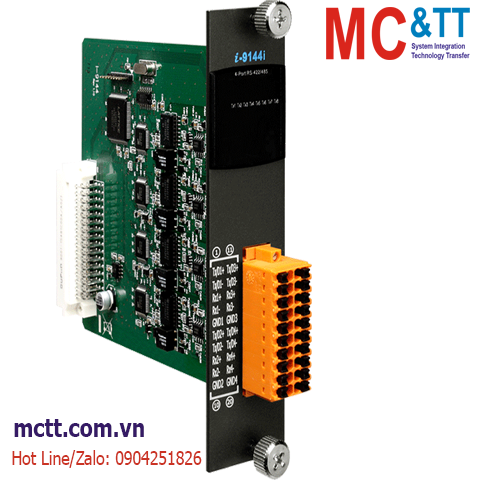

Module 4 cổng RS-422/485 ICP DAS I-9144i CR
Feature
• Includes 4 Isolated RS-422/485 Ports
• +/-4 kV ESD Protection on Each Port
• Baud Rate of up to 115200 bps
• LED Indicators for TxD, RxD and Power Status
• Internal 128-byte Hardware FIFO for Each Port
• 2500 VDC Isolation
• Built-in Self-Tuner or Auto-Direction Control
Introduction
The I-9144i provides 4 isolated RS-422/485 serial ports. Each port is equipped with a 128-byte hardware FIFO and offers speeds up to 115.2 kbps with support for RS-422 full-duplex communication. In the harsh industrial environment, the onboard ESD protection devices can divert this potentially damaging charge away from sensitive circuitry and protect the I-9144i from permanent damage. The serial communication modules are designed for use with intelligent devices like bar code readers, serial printers, intelligent sensors, instrumentation equipment, computers, and almost any device with an RS-422/485 port.
Application
Factory, Building and Home Automation
Specifications
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Channel |
| LED Indicators |
| Status |
1 x Power and Communication
4 x TxD
4 x RxD |
| COM Ports |
| Ports |
4 x RS-422/485 |
| Baud Rate |
115200 bps Max. |
| Parity |
None, Even, Odd, Mark, Space |
| Data Bit |
5, 6, 7, 8 |
| Stop Bit |
1, 1.5, 2 |
| FIFO Size |
Internal 128 Bytes for Each Port |
| Power |
| Consumption |
3 W (With 2 Resistors,1/4 Watt, 120 Ω 5%) |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9144i CR |
4-port Isolated RS-422/485 Module (RoHS) |
