Module 4 cổng FRnet ICP DAS I-9174 CR
Feature
• Innovative token-stream communication technology
• High-speed Distributed I/O Control
• Real-time I/O Synchronization Capabilities
• Fixed Cyclic Scan Time for Deterministic Control
• Easily Memory-mapping I/O Programming
• No Software Overhead for Data Transfers
• Easy to Wiring (2-wire Cabling)
Introduction

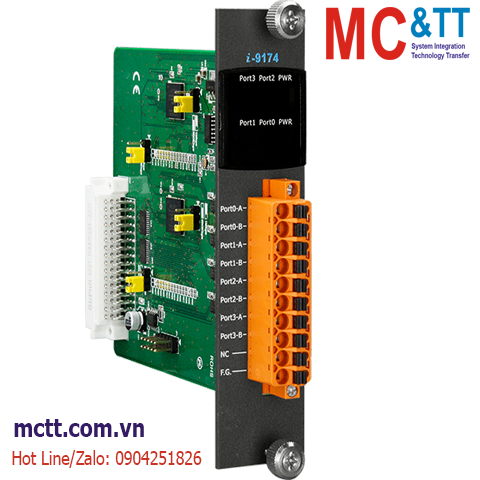

The I-9174 is an isolated FRnet controller for WP-9000-CE7 and XP-9000-WES7 Programmable Automation Controller (PAC) to implement an FRnet network. The I-9174 has four FRnet ports, each FRnet port can control a maximum of 16 communication nodes, numbered from 0 to 15. Each single node of the remote I/O module can control a maximum of 16 DI/DO channels. In other words, each FRnet port can control a maximum of 128 DI and 128 DO channels.
Application
Factory, Building and Home Automation
Specifications
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
2 x Power
4 x Communication |
| FRnet |
| Ports |
4 |
| Wire Cable |
Belden 8941 (2P twisted-pair cable), When diff erent cables are used, the transmission distance may change |
| Transfer Distance |
Max. 400 m for speed 250 Kbps (Default);
Max. 100 m for speed 1 Mbps |
| Cyclic Time |
2.88 ms for speed 250 Kbps (Default) |
| Power |
| Consumption |
0.12 A @ 5 V = 0.6 W, ±5% |
| Mechanical |
| Dimensions (mm) |
31 x 144 x 134 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9174 CR |
4-port FRnet Module (RoHS) |
