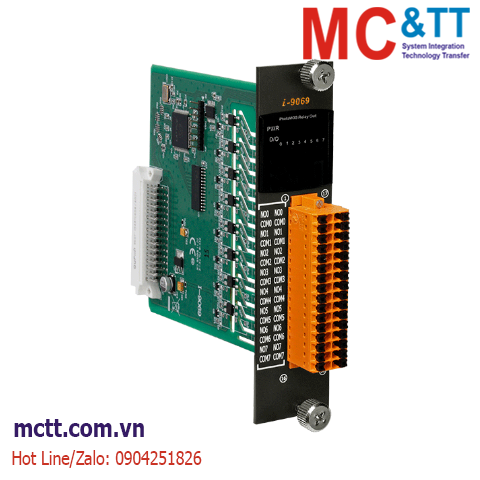

Module 8 kênh PhotoMOS Relay ICP DAS I-9069 CR
Feature
- 8-channel PhotoMOS Relay Output
- Form A Power Relay Output
- Configurable Power-on Value
- Configurable Safe Value
Introduction
The I-9069 module provides 8 Form A Relay Output channels, and is an ideal solution for high-power applications. The I-9069 includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
Specifications
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
8 x PhotoMOS Relay |
| Relay Output |
| Channels |
8 (Form A) |
| Type |
PhotoMOS Relay |
| Contact Material |
Gold-plated Silver Cadmium Alloy |
| Contact Rating |
60 V/1.0 A (Operating Temperature -25 ~ +40 °C)
60 V/0.8 A (Operating Temperature +40 ~ +60 °C)
60 V/0.7 A (Operating Temperature +60 ~ +75 °C) |
| Operate Time |
2 ms (Max.) |
| Release Time |
0.3 ms (Max.) |
| Electrical Endurance |
1 × 105 ops. |
| Mechanical Endurance |
2 × 107 ops. |
| Power on Value |
Yes |
| Safe Value |
Yes |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9069 CR |
8-ch PhotoMOS Relay Output Module (RoHS) |
