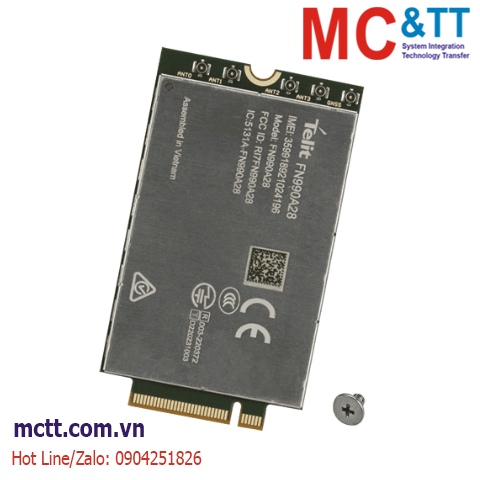

Card M.2 5G/LTE ICP DAS FN990A28 CR
Feature
- Supports NSA and SA modes
- Supports EN-DC architecture
- Supports global 5G and LTE-A tributaries
- Utilizes 3GPP Release 16 technology
- Made in Vietnam
Introduction
The FN990A28 is a 5G module designed with standard M.2 specifications for M2M and IOT applications.
The module adopts 3GPP Release 16 technology, supports 5G NSA and SA modes and EN-DC architecture, and is backward compatible with existing GSM/GPRS networks.
Application
Specifications
| 3G System |
| Data Transmission Rate |
42 DL/11 UL Mbps |
| Frequency Band |
WCDMA:
B1/B2/B4/B5/B6/B8/B19 |
| 4G System |
| Data Transmission Rate |
1.6 Gbps DL / 211 Mbps UL |
| Frequency Band |
LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28 /B30/B66/B71
LTE-TDD:
B34/B38/B39/B40/B41/B42/B43 /B48
LTE-SDL:
B29/B32/B46 |
| 5G System |
| Data Transmission Rate |
5G NSA: 3.4 Gbps DL / 0.46 Gbps UL
5G SA: 2.5 Gbps DL / 0.90 Gbps UL |
| Frequency Band |
n1/n2/n3/n5/n7/n8/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n75/n77/n78/n79
SA/NSA default off -n12/n13/n14/n18/n26/n29/n76 |
| Mechanical |
| Dimensions (mm) |
30 × 52 × 2.25 mm |
| Environment |
| Operating Temperature |
-40 °C to +85 °C |
| Storage Temperature |
-40 °C to +85 °C |
Download
Datasheet
Documents
Ordering Information
| FN990A28 CR |
5G/LTE Data Card M.2 module (RoHS) |
