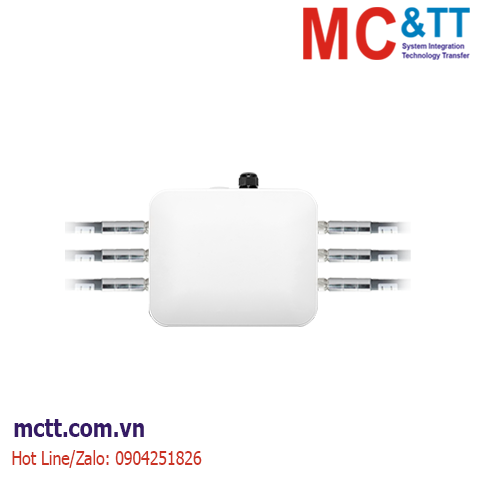

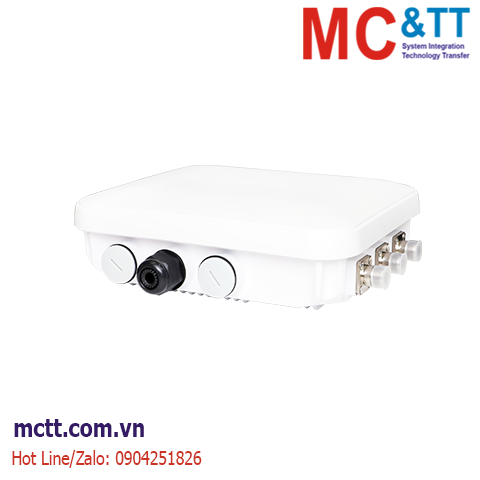

Router công nghiệp 5G với 1 cổng WAN/ LAN Wi-Fi dual-band VPN NR530X
NR530X available in 5G NR+Wi-Fi6. The product is based on a powerful Qualcomm wireless core, with a 27dBm high power and external antennas to achieve a larger coverage range. It supports IEEE 802.11a/b/g/n/ac/ax protocols, with a maximum WiFi access rate of 7800Mbps. It comes with standard 512MB of RAM (customizable from 256MB to 1GB).
NR530X is equipped with a dedicated IoT/eMBB application-designed M.2 module for global 5G Sub6GHz networks. It adopts 3GPP Release 16 technology and automatically adapts to 5G NR NSA and SA network deployments, while also being backward compatible with 4G/3G. It enables wired broadband and cellular broadband networks to be used as backups for each other. It can provide network connectivity to WiFi users in scenarios where wired broadband access is lacking, through 5G broadband.
The outstanding performance and stability of the product are not only derived from the high-end Qualcomm core platform, but also rely on our professional R&D team’s software and hardware design.
The product can be widely used in industries and scenarios such as park coverage, energy mines, smart docks, warehousing and logistics, smart cities, exhibition venues, etc.
Tính năng
- AX7800 Wi-Fi 6, M.2 5G SA/NSA Sub 6GHz Router (NR530X)
- 5G NR Router employs 3GPP Rel. 16 technology, it supports both 5G NSA and SA modes, covers all the main stream carriers worldwide.
- Supports the Wi-Fi 6(802.11ax) standard,2.4GHz and 5GHz dual-frequency UL/DL MU-MIMO, enabling AP to send data to multiple terminals at the same time.
- Fat and Fit AP in one, Fit AP mode managed uniformly by the wireless controller (AC)，Fat AP mode independent web page management.
- 2.5G Ethernet port. Using 2.5Gbps Ethernet port, compared with Gigabit port, the speed is greatly improved.
- Set WAN/LAN port as WAN to enable NR310i use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.
- Automated failover/failback back up among Ethernet, Cellular and Wi-Fi.
- Multiple SSID.
Thông số kỹ thuật
|
Mobile(Optional) |
|
5G NR Module |
Qualcomm Snapdragon X62 |
|
Frequency Bands |
5G NR SA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
|
5G NR NSA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
|
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 |
|
LTE TDD:
B34/B38/B39/B40/B41/B42/B43//B48 |
|
LAA:B46 |
|
WCDMA:B1/B2/B4/B5/B8/B19 |
|
Data Transmission Rates |
5G SA Sub-6: Max. 2.4 Gbps (DL)/Max. 900 Mbps (UL) |
|
5G NSA Sub-6: Max. 3.4 Gbps (DL)/Max. 550 Mbps (UL) |
|
5G NSA mmWave: Max. 4.0 Gbps (DL)/Max. 1.4 Gbps (UL) |
|
LTE-FDD: Max. 1.6 Gbps (DL)/Max. 200 Mbps (UL) |
|
HSPA+ : Max. 42Mbps (DL)/Max. 5.76Mbps (UL) |
|
Antennas |
Internal 4 high gain antennas |
|
SIM Card |
1 x Mini SIM(2FF), Push-push type |
|
Wi-Fi Interface |
|
Wi-Fi Chipsets |
2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53@1GHz) |
|
5GHz: Qualcomm QCN6102+QCN6024 |
|
Memory |
Flash:SPI NAND 128MB + SPI NOR 32MB |
|
RAM:512MB DDR3L SDRAM |
|
Wi-Fi Standards |
2.4 GHz: IEEE802.11b/g/n/ax |
|
5.8 GHz: IEEE 802.11a/n/ac/ax |
|
Frequency |
2.4 GHz(2.412GHz - 2.484GHz) |
|
5 GHz(5.15GHz～5.85GHz) |
|
Antennas |
2.4GHz: 2 × N-K type connectors |
|
5GHz: 4 × N-K type connectors |
|
Wi-Fi Security |
Open, WPA, WPA2PSK_TKIPAES,WAP2_EAP, WPA3 |
|
Operating Modes |
Wireless router mode
Access point mode
Repeater mode |
|
End Users |
256 |
|
Wi-Fi Data Rates |
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps |
|
TX Power |
27dBm |
|
Ethernet Interface |
|
WAN/LAN Port |
1 x Gigabit WAN (can be configured as LAN) RJ45, 10/100/1000 Mbps, auto MDI/MDIX |
|
Mode |
Full or Half Duplex (Auto-Sensing) |
|
Power Supply |
|
Power Input |
48V PoE input over WAN |
|
Power Consumption |
≤18W |
|
Standard |
IEEE 802.3at standard |
|
Physical Characteristics |
|
Housing |
Metal |
|
Dimension |
263.6*198.46*82mm(L*W*H) |
|
Installation |
Wall or Bracket mounting |
|
Operating Temperature |
-40℃ ~ +70℃ |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Ingress Protection |
IP67 |
|
Weight |
1800g |
|
Software |
|
VPN Client |
IPSec Client
PPTP VPN Client
L2TP VPN Client |
|
Others |
|
Button |
Press and hold 5s to restore factory Settings |
|
Console |
RJ45 |
|
Indicators LED |
PWR,ETH, 5G , 2.4G, 5.8G |
