Router công nghiệp 5G với 1 cổng WAN/ LAN Wi-Fi dual-band VPN NR520X

Router công nghiệp 5G với 1 cổng WAN/ LAN Wi-Fi dual-band VPN NR520X

Mã sản phẩm: NR520X

Thương hiệu: PUSR

Tình trạng:

5G lte Industrial Cellular Router

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Router công nghiệp 5G với 1 cổng WAN/ LAN Wi-Fi dual-band VPN NR520X

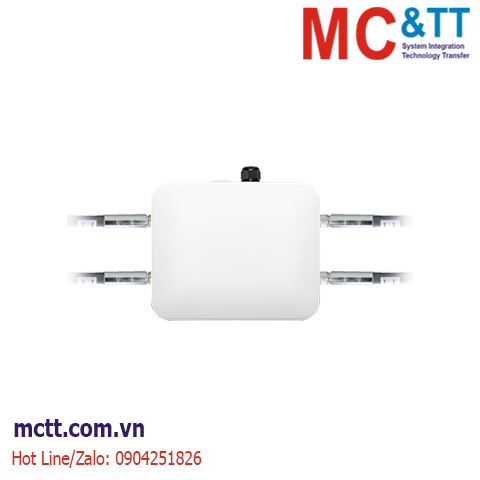

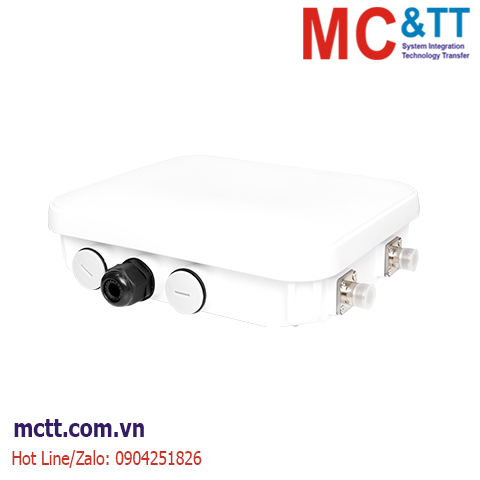

NR520X is an outdoor WiFi6 dual-band AP supports 5G NR, which is also called FWA (Fixed Wireless Access) AP. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas. It supports the IEEE 802.11a/b/g/n/ac /ax protocols, the maximum WiFi access rate reaches 2975Mbps. The product comes with a standard configuration of a 512MB RAM (customizable from 256MB to 1GB). The product is equipped with the 5G Sub-6GHz M.2 module designed for IoT/eMBB applications, automatically adapts to 5G NR NSA&SA and supports mutual backup between wired broadband and cellular wireless broadband networks. The excellent performance and stability not only come from the high-end Qualcomm core platform, but also rely on the professional hardware and software designd by our professional R&D team. The product can be widely used in industries and scenarios such as park coverage, mine sites, smart warehousing&logistics, smart city, exhibition halls and venues.

Tính năng

AX3000 Wi-Fi 6, M.2 5G SA/NSA Sub 6GHz Router (NR520X)
5G NR Router employs 3GPP Rel. 16 technology, it supports both 5G NSA and SA modes, covers all the main stream carriers worldwide.
Supports the Wi-Fi 6(802.11ax) standard,2.4GHz and 5GHz dual-frequency UL/DL MU-MIMO, enabling AP to send data to multiple terminals at the same time.
Fat and Fit AP in one, Fit AP mode managed uniformly by the wireless controller (AC)，Fat AP mode independent web page management.
2.5G Ethernet port. Using 2.5Gbps Ethernet port, compared with Gigabit port, the speed is greatly improved.
Set WAN/LAN port as WAN to enable NR310i use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.
Automated failover/failback back up among Ethernet, Cellular and Wi-Fi.
Multiple SSID.

Thông số kỹ thuật

Mobile(Optional)
5G NR Module	Qualcomm Snapdragon X62
Frequency Bands	5G NR SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
	5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71
	LTE TDD: B34/B38/B39/B40/B41/B42/B43//B48
	LAA:B46
	WCDMA:B1/B2/B4/B5/B8/B19
Data Transmission Rates	5G SA Sub-6: Max. 2.4 Gbps (DL)/Max. 900 Mbps (UL)
	5G NSA Sub-6: Max. 3.4 Gbps (DL)/Max. 550 Mbps (UL)
	5G NSA mmWave: Max. 4.0 Gbps (DL)/Max. 1.4 Gbps (UL)
	LTE-FDD: Max. 1.6 Gbps (DL)/Max. 200 Mbps (UL)
	HSPA+ : Max. 42Mbps (DL)/Max. 5.76Mbps (UL)
Antennas	Internal 4 high gain antennas
SIM Card	1 x Mini SIM(2FF), Push-push type
Wi-Fi Interface
Wi-Fi Chipsets	2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53@1GHz)
Wi-Fi Chipsets	5GHz: Qualcomm QCN6102
Memory	Flash:SPI NAND 128MB + SPI NOR 8MB
Memory	RAM:512MB DDR3L SDRAM
Wi-Fi Standards	2.4 GHz: IEEE802.11b/g/n/ax
Wi-Fi Standards	5.8 GHz: IEEE 802.11a/n/ac/ax
Frequency	2.4 GHz(2.412GHz - 2.484GHz)
Frequency	5 GHz(5.15GHz～5.85GHz)
Antennas	2.4GHz: 2× N type Connectors
Antennas	5GHz: 2× N type Connectors
Wi-Fi Security	Open, WPA, WPA2PSK_TKIPAES,WAP2_EAP, WPA3
Operating Modes	Wireless router mode Access point mode Repeater mode
End Users	256
Wi-Fi Data Rates	802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
TX Power	27dBm
Ethernet Interface
WAN/LAN Port	1 x Gigabit WAN (can be configured as LAN) RJ45, 10/100/1000 Mbps, auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Power Supply
Power Input	48V PoE input over WAN
Power Consumption	15W
Standard	IEEE 802.3at standard
Physical Characteristics
Housing	Metal
Dimension	24520090mm(LWH)
Installation	Wall or Bracket mounting
Operating Temperature	-40℃~ +70℃
Storage Temperature	-40℃~ +85℃
Ingress Protection	IP67
Weight	1800g
Software
VPN Client	IPSec Client PPTP VPN Client L2TP VPN Client
Others
Button	Press and hold 5s to restore factory Settings
Console	RJ45
Indicators LED	PWR,ETH, 5G , 2.4G, 5.8G.
