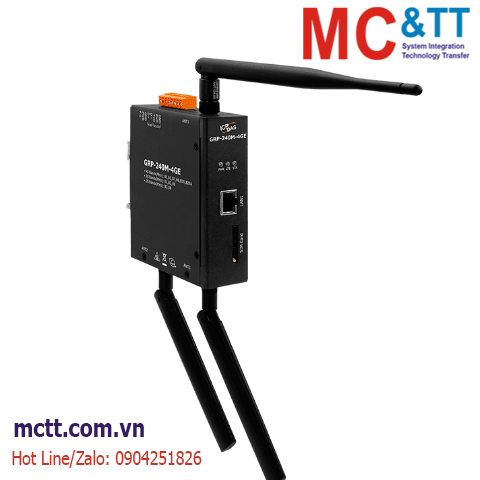

Modem/Router công nghiệp GSM/WCDMA(3G)/LTE(4G) + Ethernet/Serial ICP DAS GRP-240M-4GE CR
Feature
- Supports network address translation (NAT)
- Supports port forwarding
- Supports serial port to mobile network
- 1 x 10 / 100 Mbps Ethernet port
- 1 x serial port (RS-232 / RS-485)
- LTE FDD Cat4 with 3G / 2G fallback
Introduction
The GRP-240M-4GE industrial gateway is designed for wireless communication, enabling IP devices and serial port devices to connect to a cellular network. It is ideal for M2M and IoT applications, including industrial PCs, HMIs, and sensors. LTE Cat 4 offers a peak downlink data rate of approximately 150 Mbps and an uplink peak data rate of 50 Mbps. The gateway features one Ethernet port and one serial port (1 × RS-232 / RS-485).
Application
Specifications
| LED Indicators |
| Status |
1 x PWR
1 x LTE
1 x STA |
| 2G System |
| Frequency Band |
B3, B8 |
| Power Class |
GSM LB: Class 4 (2W, 33dBm), Class E2 (0.5W, 27dBm @ EDGE)
GSM HB: Class 1 (1W, 30dBm), Class E2 (0.4W, 26dBm @ EDGE) |
| 3G System |
| Frequency Band |
B1, B3, B8 |
| Power Class |
WCDMA: Class 3 (0.25W, 24dBm)
TD-SCDMA: Class 3 (0.13W, 21dBm) |
| 4G System |
| Frequency Band |
LTE FDD: B1, B3, B7, B8, B20, B28A |
| Ethernet |
| Ports |
1 x RJ-45, 10 / 100 Base-T(X) |
| COM Ports |
| Ports |
1 x RS-232 / RS-485 |
| Power |
| Input Range |
+10 ~ +30VDC |
| Consumption |
3.6W (150mA @ 24VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 98 x 125 (W x L x H) |
| Installation |
DIN-Rail / Screw |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GRP-240M-4GE CR |
Gateway for Converting Ethernet and Serial Port to Mobile Communication ( RoHS)(Asia only) |
