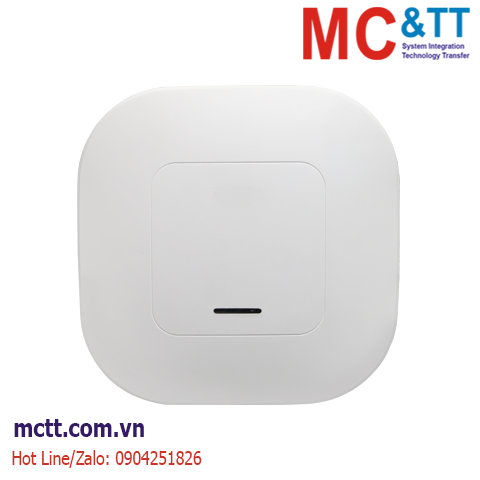

Router công nghiệp 5G với 1 cổng LAN + 1 cổng WAN + Wi-Fi dual-band VPN NR310i
NR310i is a WiFi6 dual-band ceiling-mounted commercial access point with 5G NR, which is also called FWA (Fixed Wireless Access). The product is based on the powerful Qualcomm wireless core platform, with 24dBm TX power and 5dBi high-gain built-in antennas. It supports IEEE 802.11a/b/g/n/ac/ax, the maximum WiFi rate reaches almost 3000Mbps. The product comes with a standard configuration of a 512MB RAM(supports customization from 256MB to 1GB). The product is equipped with the 5G Sub-6GHz M.2 module designed for IoT/eMBB applications, adopts 3GPP Release 16 technology, automatically adapts to 5G NR NSA and SA, backward compatible with 4G/3G, and supports mutual backup between wired broadband and cellular wireless broadband networks. The excellent performance and stability not only come from the high-end Qualcomm core platform, but also rely on the professional hardware and software design by our professional R&D team. The product can be widely used in industries and scenarios such as offices, education and training, smart medical care, apartments, dormitories, exhibition halls and auditoriums.
Tính năng
- AX3000 Wi-Fi 6, M.2 5G SA/NSA Sub 6GHz Router(NR310i).
- 5G NR Router employs 3GPP Rel. 16 technology, it supports both 5G NSA and SA modes, covers all the main stream carriers worldwide.
- Supports the Wi-Fi 6(802.11ax) standard,2.4GHz and 5GHz dual-frequency UL/DL MU-MIMO, enabling AP to send data to multiple terminals at the same time.
- Fat and Fit AP in one, Fit AP mode managed uniformly by the wireless controller (AC)，Fat AP mode independent web page management.
- 2.5G Ethernet port. Using 2.5Gbps Ethernet port, compared with Gigabit port, the speed is greatly improved.
- Set WAN/LAN port as WAN to enable NR310i use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.
- Automated failover/failback back up among Ethernet, Cellular and Wi-Fi.
- Multiple SSID.
Thông số kỹ thuật
| Mobile(Optional) |
| 5G NR Module |
Qualcomm Snapdragon X62 |
| Frequency Bands |
5G NR SA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
|
5G NR NSA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
|
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 |
|
LTE TDD:
B34/B38/B39/B40/B41/B42/B43//B48 |
| LAA:B46 |
| WCDMA:B1/B2/B4/B5/B8/B19 |
| Data Transmission Rates |
5G SA Sub-6: Max. 2.4 Gbps (DL)/Max. 900 Mbps (UL) |
| 5G NSA Sub-6: Max. 3.4 Gbps (DL)/Max. 550 Mbps (UL) |
| 5G NSA mmWave: Max. 4.0 Gbps (DL)/Max. 1.4 Gbps (UL) |
| LTE-FDD: Max. 1.6 Gbps (DL)/Max. 200 Mbps (UL) |
| HSPA+ : Max. 42Mbps (DL)/Max. 5.76Mbps (UL) |
| Antennas |
Internal high gain antenna*4 |
| SIM Card |
1 x Mini SIM(2FF), Push-push type |
| Wi-Fi Interface |
| Wi-Fi Chipsets |
2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53@1GHz) |
| 5GHz: Qualcomm QCN6102 |
| Memory |
Flash:SPI NAND 128MB + SPI NOR 8MB |
| RAM:512MB DDR3L SDRAM |
| Wi-Fi Standards |
2.4 GHz: IEEE802.11b/g/n/ax |
| 5.8 GHz: IEEE 802.11a/n/ac/ax |
| Frequency |
2.4 GHz(2.412GHz - 2.484GHz) |
| 5 GHz(5.15GHz～5.85GHz) |
| Antennas |
Internal high gain antenna*4 |
| Wi-Fi Security |
Open, WPA, WPA2PSK TKIPAES,WAP2 EAP.WPA3 |
| Operating Modes |
Wireless router mode
Access point mode
Repeater mode |
| End Users |
256 |
| Wi-Fi Data Rates |
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps+4804Mbps |
| TX Power |
24dBm |
| Ethernet Interface |
| WAN |

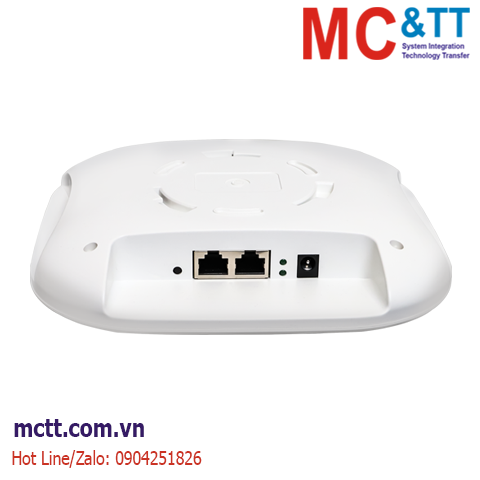

1 x 2.5Gigabit WAN RJ45, compatible with 10/100/1000M |
| LAN |
1 x 1Gigabit LAN RJ45, 10/100/1000 Mbps, auto MDI/MDIX |
| Mode |
Full or Half Duplex (Auto-Sensing) |
| Power Supply |
| Power Input |
48V PoE input over WAN |
| Power Consumption |
15W |
| Standard |
IEEE 802.3at standard |
| Physical Characteristics |
| Housing |
Plastic |
| Dimension |
190*190*42mm(L*W*H) |
| Installation |
Ceiling mounting |
| Operating Temperature |
0℃~ +40℃ |
| Storage Temperature |
-40℃～+70℃ |
| Ingress Protection |
IP30 |
| Weight |
500g |
| Software |
| VPN Client |
IPSec Client
PPTP VPN Client
L2TP VPN Client |
| Others |
| Button |
Press and hold 5s to restore factory Settings |
| Indicators LED |
WAN,LAN, Internet |
