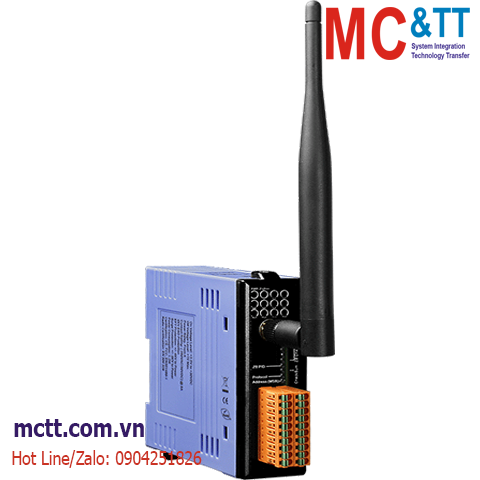

Module Zigbee Modbus RTU 6 kênh DI + 4 kênh Power Relay ICP DAS ZT-2060 CR

Feature

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • External DIP and Rotary Switches for easy Configuration
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 6 Digital Input Channels and 4 Relay Output Channels
  • All Channels Can Be Used As 16-bit Counters
  • ESD and Surge Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mountable

Introduction

The ZT-2060 offers 4 Form A power relay output channels and 6 digital input channels, each of which features photocouple isolation. In addition, you can choose sink-type or source-type input via wire connections. Digital input channels are able to be used as 16-bit counters and Relay channels are options for configuring power-on and safe digital output values The ZT-2060 has 10 LED indicators to display the channel status, and has 4 kV ESD protection and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) 4 kV for Power Line
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
Surge (IEC 61000-4-5) 3 kv for Power Line
LED Indicators
Status 1 x Power and Communication
6x Digital Input
4 x Digital Output
ZigBee
Antenna 2.4 GHz, 5 Omni-Directional
Certifications FCC/FCC ID, CE (RED excluded)
Max. Slaves 255
Protocol Supports DCON and Modbus RTU Protocols
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
Transmission Distance (LoS) 700 m (Typical)
Digital Input
Channels 6
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Wet: +3.5 VDC ~ +30 VDC
OFF Voltage Level Wet: Max. +1 VDC
Input Impedance 3 kΩ, 0.33 W
Digital Input/Counter
Channels 6
Max. Counts 16-bit (65535)
Frequency 100 Hz Max.
Min. Pulse Width 5 ms
Relay Output
Channels 4
Type Power Relay, Form A (SPST N.O)
Contact Rating 5 A @ (250 VAC/30 VDC)
Operate Time 10 ms
Release Time 5 ms
Electrical Endurance 100,000 ops
Mechanical Endurance 20,000,000 ops at no load (300 ops/minute)
Power on Value Yes, Programmable
Safe Value Yes, Programmable
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 1.4 W
Mechanical
Dimensions (mm) 33 x 96 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ZT-2060     CR  ZigBee Wireless 6-ch Isolated DI and 4-ch Power Relay Module (ZigBee Router) (RoHS)
(Asia Only)
