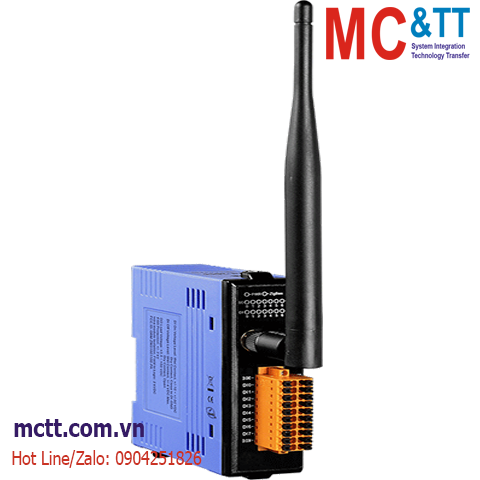

Module Zigbee Modbus RTU 8 kênh DI + 8 kênh DO ICP DAS ZT-2055 CR

Feature

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • External DIP and Rotary Switches for easy Configuration
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 8 Digital Input Channels and 8 Digital Output Channels
  • All Digital Input Channels can be used as 16-bit Counters
  • Sink-type Digital Output Channels with Overload Protection
  • Surge and ESD Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mountable

Introduction

The ZT-2055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The ZT-2055 supports source-type output with short circuit protection. There are options for configuring power-on and safe digital output values. The ZT-2055 has 16 LED indicators to display the channel status, and has 4 kV ESD protection and 2500 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) 4 kV for Power Line
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
Surge (IEC 61000-4-5) 3 kV for Power Line
LED Indicators
Status 1 x Power and Communication
8 x Digital Input
8 x Digital Output
ZigBee
Antenna 2.4 GHz, 5 Omni-Directional
Certifications FCC/FCC ID, CE (RED excluded)
Max. Slaves 255
Protocol Supports DCON and Modbus RTU Protocols
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
Transmission Distance (LoS) 700 m (Typical)
Digital Input/Counter
Channels 8
Type Dry Contact,
Wet Contact
Sink/Source (NPN/PNP) Dry: Source
Wet: Sink/Source
ON Voltage Level Dry: Open
Wet: +10 VDC ~ +50 VDC
OFF Voltage Level Dry: Close to GND
Wet: Max. +4 VDC
Max. Counts 16-bit (65535)
Frequency 100 Hz Max.
Min. Pulse Width 5 ms
Effective Distance Max. 500 meters
Input Impedance 10 KΩ
Overvoltage Protection ±70 VDC
Digital Output
Channels 8
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ 50 VDC
Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Power on Value Yes, Programmable
Safe Value Yes, Programmable
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 2.5 W
Mechanical
Dimensions (mm) 33 x 96 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ZT-2055     CR  ZigBee Wireless 8-ch Isolated DI and 8-ch Isolated DO Module (ZigBee Router) (RoHS)
(Asia Only)
