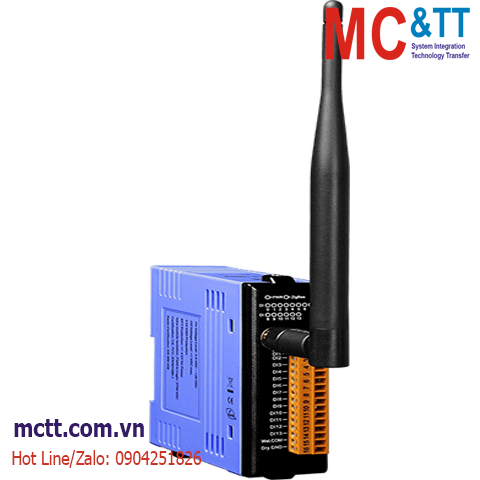

Module Zigbee Modbus RTU 14 kênh DI ICP DAS ZT-2053 CR

Feature

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G / ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • External DIP and Rotary Switches for easy Configuration
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 14 Dry or Wet Contact Digital Input Channels
  • Supports 16-bit Counters for Digital Input Channels
  • Surge and ESD Protection
  • DIN-Rail Mountable

Introduction

The ZT-2053 offers 14 digital input channels which can be used for either dry or wet contact. Its effective distance for dry contact is up to 500 meters. All channels are able to be used as 16-bit counters. The ZT-2053 includes 14 LED indicators to display the channel status as well as 4 kV ESD protection and 3750 Vrms intra-module isolation. Users can easily to configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) 4 kV for Power
ESD (IEC 61000-4-2) 4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
Surge (IEC 61000-4-5) 3 kV for Power
LED Indicators
Status 1 x Power and Communication
14 x Digital Input
ZigBee
Antenna 2.4 GHz, 5 Omni-Directional
Certifications FCC/FCC ID, CE (RED excluded)
Max. Slaves 255
Protocol Supports DCON and Modbus RTU Protocols
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (FCC Certificated) (Max. 19 dBm)
Transmission Distance (LoS) 700 m (Typical)
Digital Input
Channels 14
Type Dry + Wet Contact
ON Voltage Level Dry: Close to GND
Wet: +3.5 VDC ~ +30 VDC
OFF Voltage Level Dry: Open
Wet: Max. +1 VDC
Input Impedance 3 kΩ, 0.33 W
Digital Input/Counter
Channels 14
Max. Counts 16-bit (65535)
Frequency 100 Hz
Min. Pulse Width 5 ms
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 0.72 W
Mechanical
Dimensions (mm) 33 x 87 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ZT-2053     CR  ZigBee Wireless 14-ch Isolated DI Module (ZigBee Router) (RoHS)(Asia Only)
