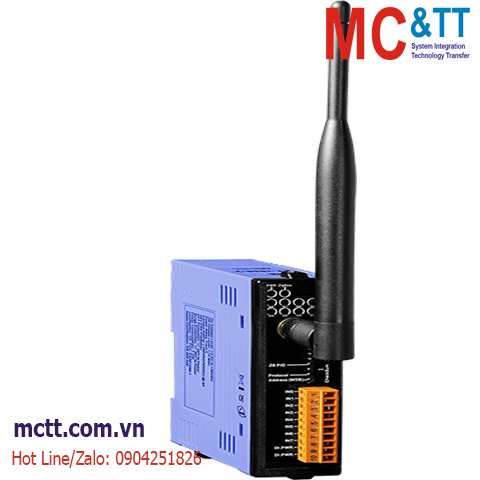

Module Zigbee Modbus RTU 8 kênh DI/Counter ICP DAS ZT-2052 CR

Feature

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4 / ZigBee Specifications
  • Wireless Transmission Range up to 700 m (Default)
  • Adjustable RF Transmission Output Power
  • External DIP and Rotary Switches for easy Configuration
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 8 Wet Contact Digital Input Channels
  • Supports 16-bit Counters for Digital Input Channels
  • Surge and ESD Protection
  • DIN-Rail Mountable

Introduction

The ZT-2052 offers 8 digital input channels, each of which features photocouple isolation. In addition, you can choose either sink-type or source-type input via wire connections. All channels are able to be used as 16-bit counters. The ZT-2052 has 8 LED indicators to display the channel status and also includes 4 kV ESD protection and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

Isolation
Intra-module Isolation 3000 Vrms
EMS Protection
ESD (IEC 61000-4-2) +/-4 kV contact for each channel
LED Indicators
Status 1 x Power and Communication
8 x Digital Input
ZigBee
Antenna 2.4 GHz,5 dBi Omni directional
Certifications FCC/FCC ID, CE (RED excluded)
Max. Slaves 255
Protocol Supports DCON and Modbus RTU Protocols
Standard ZigBee , IEEE 802.15.4
Transmission Power 11 dBm
Transmission Distance (LoS) 700 m (Typical)
Digital Input/Counter
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink/ Source
ON Voltage Level Wet: +3.5 VDC ~ +30 VDC
OFF Voltage Level Wet: Max. +1 VDC
Max. Counts 16-bit (65535)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 3 kΩ, 0.33 W
Power
Input Range +10 VDC ~ +30 VDC
Consumption Max. 1 W
Mechanical
Dimensions (mm) 33 x 88 x 110 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ZT-2052     CR  ZigBee Wireless 8-ch Isolated DI Module with 16-bit Counter (ZigBee Router) (RoHS)
(Asia Only)
