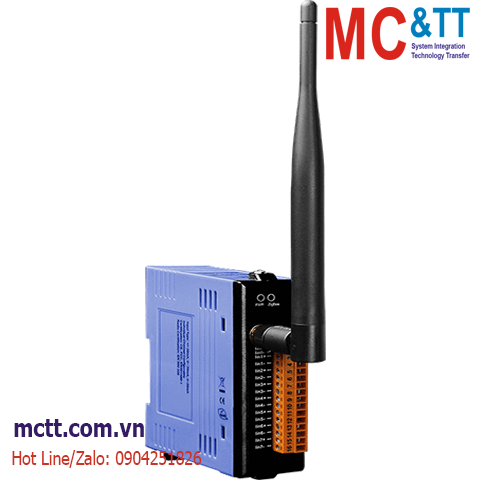

Module Zigbee Modbus RTU 8 kênh AI ICP DAS ZT-2017C CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G / ZigBee Specifications
- Wireless Transmission Range up to 700 m
- External DIP and Rotary Switches for easy Configuration
- GUI Configuration Software (Windows Version)
- 8 Differential Current Input Channels
- Individual Channel Configuration
- Open Wire Detection for 4 ~ 20 mA
- ±4 kV ESD Protections (Conact for each Terminal)
- DIN-Rail Mounting
Introduction
The ZT-2017C is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (-20 mA ~ +20 mA, 0 ~ +20 mA or +4 ~ +20 mA) . Each analog channel can be configured for an individual range and has a high 200 VDC common voltage protection. The module Supports open wire detection for 4 ~ 20 mA. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Power Line, Communication Line and each Channel,
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| ZigBee |
| Antenna |
2.4 GHz - 5 dBi Omni-directional Antenna |
| Certifications |
FCC/FCC ID, CE (RED excluded) |
| Max. Slaves |
255 |
| Protocol |
Supports DCON and Modbus RTU Protocols |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (FCC Certificated) (Max. 19 dBm) |
| Transmission Distance (LoS) |
700 m (Typical) |
| Analog Input |
| Channels |
8 Differential |
| Type |
-20 mA ~ +20 mA, 0 mA ~ +20 mA or +4 mA ~ +20 Ma |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Sec. (Total) |
| Bandwidth |
15.7 Hz |
| Input Impedance |
125 Ω |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes, 4 ~ 20 mA |
| Intra-module Isolation |
3000 VDC |
| Analog Output |
| Accuracy |
±0.1% of FSR |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1.4 W Max. |
| Mechanical |
| Dimensions (mm) |
33 x 87 x 110 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2017C CR |
ZigBee Wireless 8-ch Current Input Module with High Common Voltage Protection (ZigBee Router) (RoHS) (Asia Only) |
